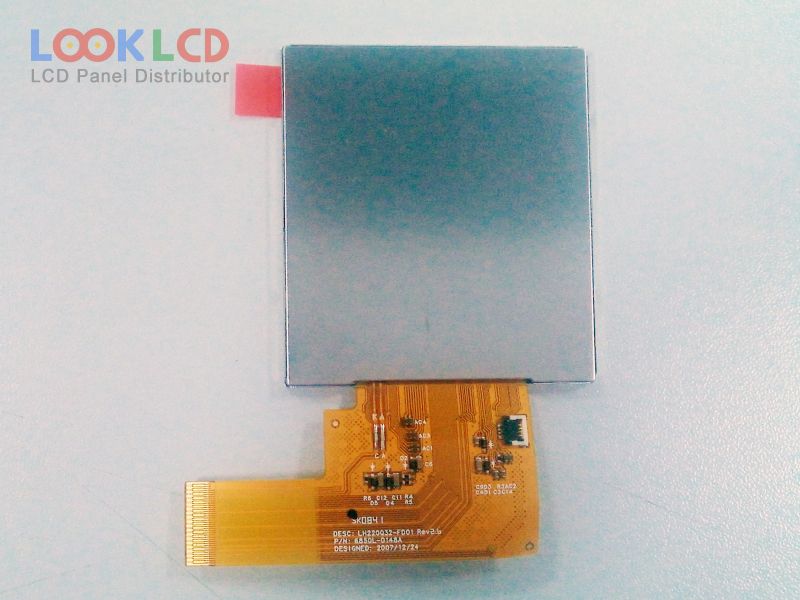

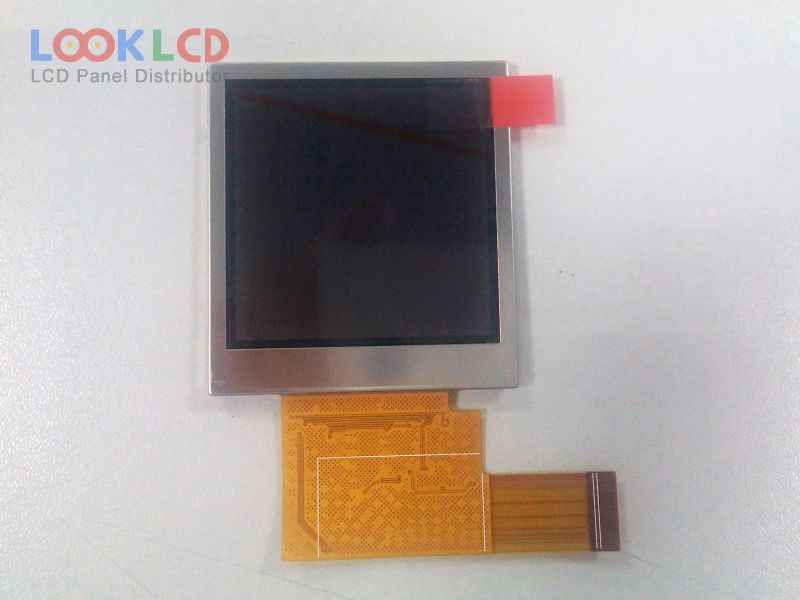

| Nombor Bahagian | DLC0220KZG |
| Jenama | Other |
| Saiz | 2.2 |
| Permohonan | MPH |
| Resolusi | 320×320 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 120:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | DLC |
| model panel | DLC0220KZG |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.2 inch |
| resolusi | 320(RGB)×320 |
| mod paparan | ECB, Normally White, Transflective |
| kawasan aktif | 39.36×39.36 mm |
| garis besar | 47.4×51.85×2.7 mm |
| permukaan | |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 120:1 (Typ.)(Transmissive)5:1 (Typ.)(Reflective) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 45/45/40/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S1PWLEDWithout Driver |

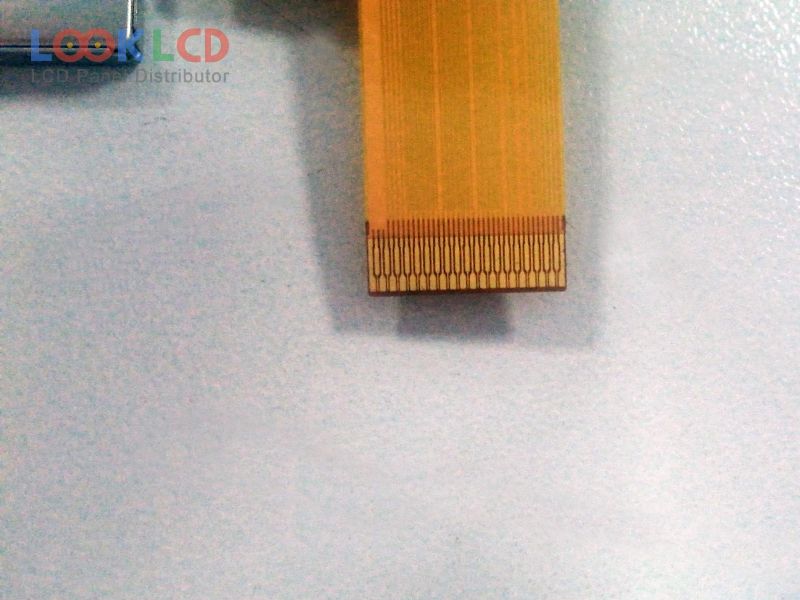

| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 39 pins |
| voltan masukan | 3.0V (Typ.)(VDD) |
| permohonan | MPH |
| DLC0200EUG | Other | 2.0 | 240×320 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| DLC0220KZG | Other | 2.2 | 320×320 |
| DLC0240ACOG-3 | Other | 2.4 | 240×320 |
| DLC0240LZG-4 | Other | 2.4 | 240×320 |
| DLC0270CUOF | Other | 2.7 | 256×64 |
| DLC0283FZG-7 | Other | 2.8 | 240×320 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
| BTL454885-W698L | BOE | 4.5 | 480×854 |
| ET0320A5DM9 | EDT | 3.2 | 240×320 |
| H027QT01 | AUO | 2.7 | 208×320 |
| LH350WV3-SH01 | LG Display | 3.5 | 480×854 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LS030B3UX07 | SHARP | 3.0 | 240×400 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS040T8LX02 | SHARP | 4.0 | 480×854 |
| LS050T1SX06 | SHARP | 5.0 | 1080×1920 |
| OEL9M0039-W-E | Other | 1.5 | 128×128 |
