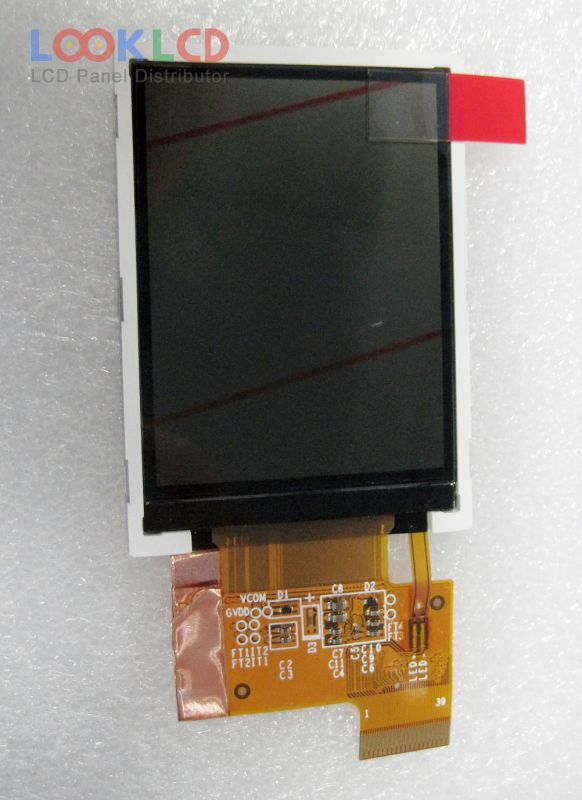

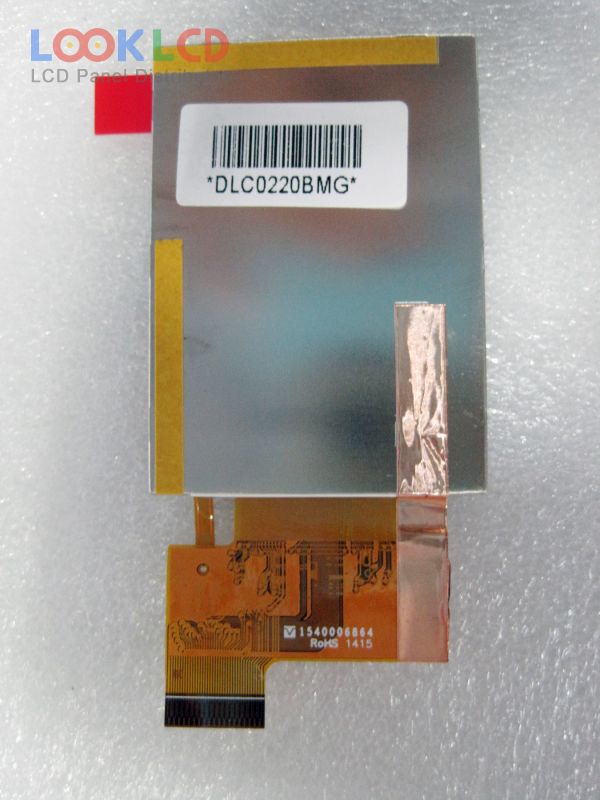

| Nombor Bahagian | DLC0220BMG |
| Jenama | Other |
| Saiz | 2.2 |
| Permohonan | MPH |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 90 |
| CR | 120:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | DLC |
| model panel | DLC0220BMG 2 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.2 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | ECB, Normally White, Transflective |
| kawasan aktif | 33.84×45.12 mm |
| garis besar | 40.6×56.6 mm |
| permukaan | Clear, Hard coating (3H) |
| kecerahan | 90 cd/m² (Typ.) |
| nisbah kontras | 120:1 (Typ.)(Transmissive) |
| warna paparan | 262K (6-bit), CIE193130% |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 40/45/48/45 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| voltan masukan | 2.8V (Typ.)(VDD) |
| permohonan | MPH |
