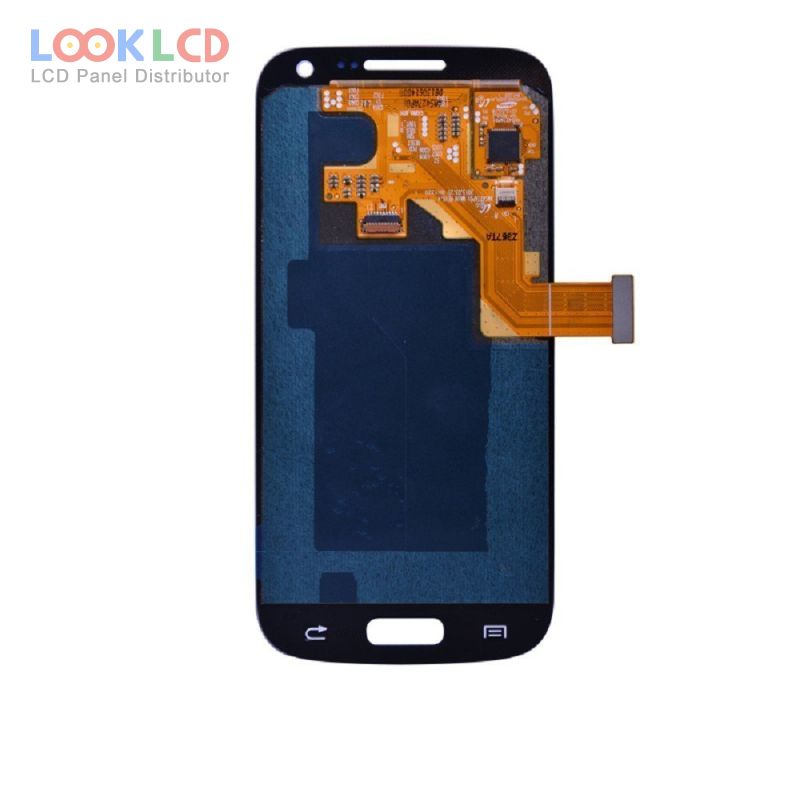

| Nombor Bahagian | AMS427GL45-0 |
| Jenama | Samsung |
| Saiz | 4.3 |
| Permohonan | MPH |
| Resolusi | 480×800 |
| Komposisi | Assembly |
| Kecerahan | 300 |
| CR | 10000:1 |
| Warna | 16.7M |
| Lampu latar | self |
| Antara muka | TTL |
| jenama panel | SAMSUNG SMD |
| model panel | AMS427GL45-0 |
| jenis panel | AM-OLED , Assembly |
| saiz panel | 4.3 inch |
| resolusi | 480(RGB)×800 , WVGA |
| kawasan aktif | 55.8×93 mm |
| garis besar | 62.68×121.93 mm |
| permukaan | Hard coating |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 10000 : 1 (Min.) |
| warna paparan | 16.7M (8-bit), CIE1931106% |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| voltan masukan | 1.8/3.0/3.8V (Typ.)(VDD3/VCI/VBAT) |
| permohonan | MPH |
