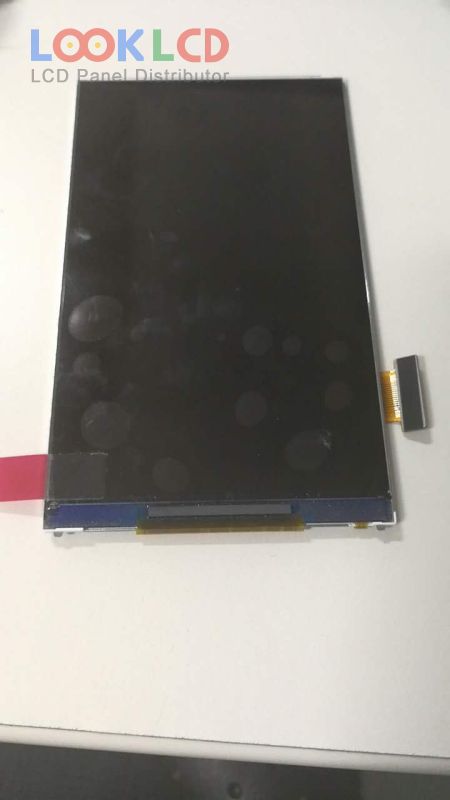

| Nombor Bahagian | HVA42WV1-M00 |
| Jenama | HYDIS |
| Saiz | 4.2 |
| Permohonan | MPH |
| Resolusi | 480×800 |
| Komposisi | LCM |
| Kecerahan | 420 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | HYDIS |
| model panel | HVA42WV1-M00 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.2 inch |
| resolusi | 480(RGB)×800 , WVGA |
| mod paparan | HFFS, Normally Black, Transmissive |
| kawasan aktif | 54.72×91.2 mm |
| garis besar | 59.12×100.15×1.9 mm |
| permukaan | |
| kecerahan | 420 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193160% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| voltan masukan | 1.8/3.0V (Typ.)(IOVCC/VCC) |
| permohonan | MPH |
| ACX399CMP-7 | SONY | 2.9 | 640×360 |
| CT024TN04 V.F | Innolux | 2.4 | 240×320 |
| LH450WX3-SD01 | LG Display | 4.5 | 720×1280 |
| LH470WX6-SD02 | LG Display | 4.7 | 750×1334 |
| LH550WF2-SD03 | LG Display | 5.5 | 1080×1920 |
| LS050T1SX04 | SHARP | 5.0 | 1080×1920 |
| LTP283QV-F03 | Samsung | 2.8 | 240×320 |
| PJ028MA-01A | Innolux | 2.8 | 240×320 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| TD025THED2 | TPO | 2.5 | 320×240 |
