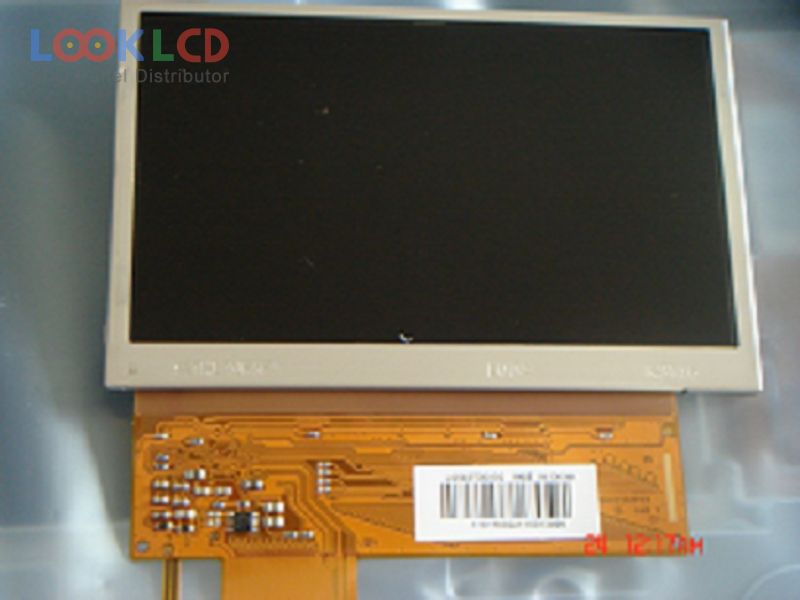

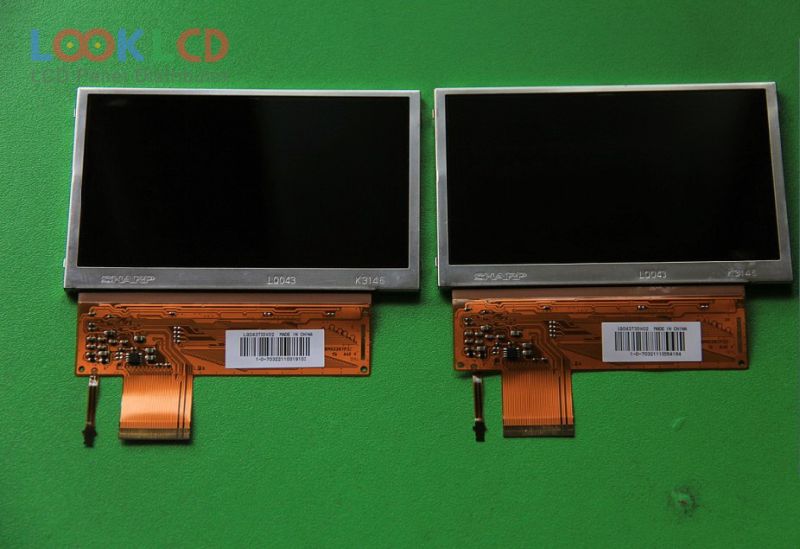

| Nombor Bahagian | LQ043T3DX02 |
| Jenama | SHARP |
| Saiz | 4.3 |
| Permohonan | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 165 |
| CR | 400:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ043T3DX02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.3 inch |
| resolusi | 480(RGB)×272 , WQVGA |
| mod paparan | ASV, Normally Black, Transmissive |
| kawasan aktif | 95.04×53.856 mm |
| garis besar | 105.5×67.2 mm |
| permukaan | Clear, Hard coating |
| kecerahan | 165 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 30/30 (Typ.)(Tr/Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 7S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltan masukan | 2.5/5.0V (Typ.)(VCC/AVDD) |
| permohonan | PND |
