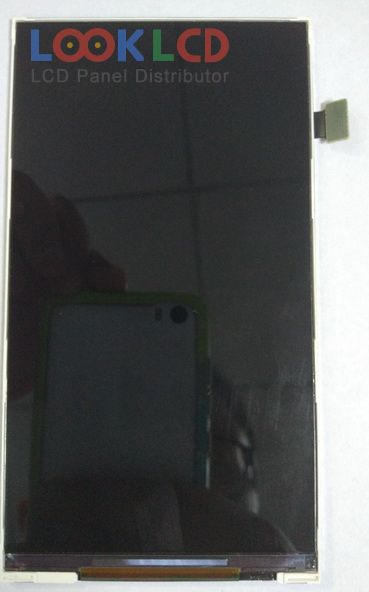

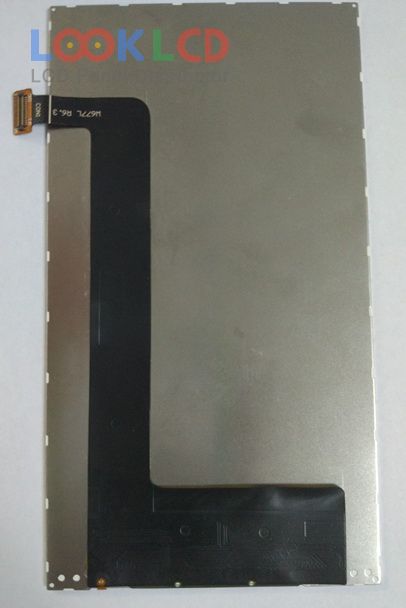

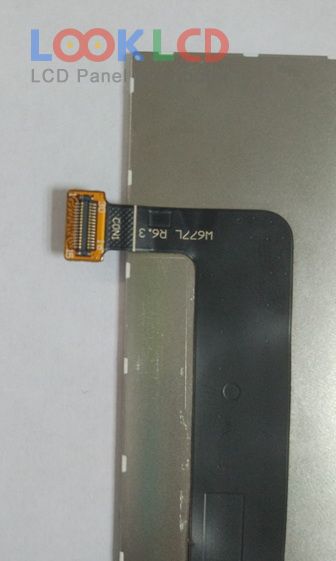

| Nombor Bahagian | BTL507212-W677L |
| Jenama | BOE |
| Saiz | 5.0 |
| Permohonan | MPH |
| Resolusi | 720×1280 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | BTL507212-W677L |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 720(RGB)×1280 , WXGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 62.1×110.4 mm |
| garis besar | 66.3×121×1.75 mm |
| permukaan | Clear |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 35 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S2PWLEDWithout Driver |
| antara muka isyarat | MIPI (4 data lanes), 30 pins |
| voltan masukan | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| permohonan | MPH |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| BTL507212-W677L | BOE | 5.0 | 720×1280 |
| BTL507212-W746L | BOE | 5.0 | 720×1280 |
| BTL507212-W749L | BOE | 5.0 | 720×1280 |
| CLAF050LN41 TXX | CPT | 5.0 | 540×960 |
| HSD050IDW1-A30 | HannStar | 5.0 | 800×480 |
| PA050XS7 | E Ink | 5.0 | 320×234 |
| PD050OX1 | E Ink | 5.0 | 480×480 |
| PD050SX2 | E Ink | 5.0 | 800×600 |
| PD050VX6 | E Ink | 5.0 | 640×480 |
| AMS320FH01-0 | Samsung | 3.2 | 240×400 |
| AMS369FG03-002 | Samsung | 3.7 | 480×800 |
| CLAF050LN41 TXX | CPT | 5.0 | 540×960 |
| DX08D11VM0AAA | KOE | 3.0 | 480×800 |
| LH350H02-FD02 | LG Display | 3.5 | 320×480 |
| LH400WV3-SD05 | LG Display | 4.0 | 480×800 |
| LT032MDQ7000 | JDI | 3.2 | 360×480 |
| TM022GDH11 | Tianma | 2.2 | 176×220 |
| TM028HDH21 | Tianma | 2.8 | 240×320 |
| TM032PDZ04 | Tianma | 3.2 | 320×480 |
