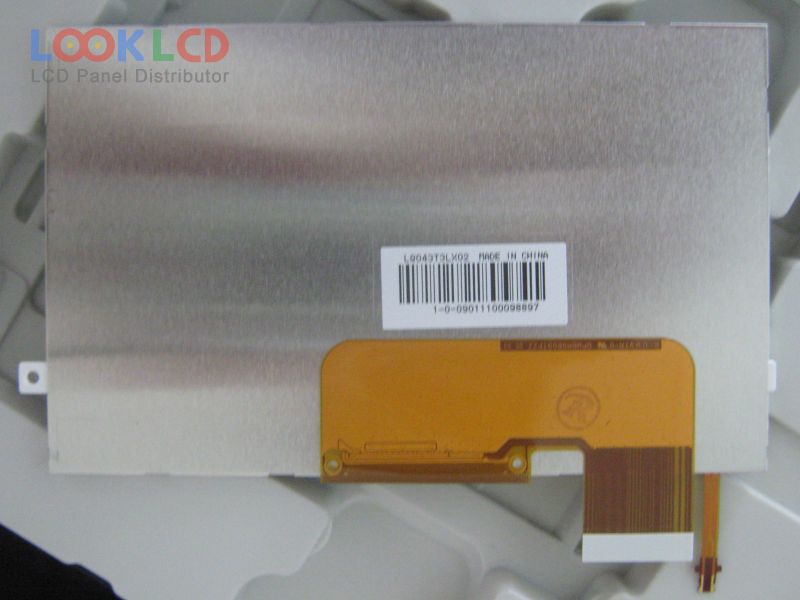

| Nombor Bahagian | LQ043T3LX02 |
| Jenama | SHARP |
| Saiz | 4.3 |
| Permohonan | PND |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 1500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | SHARP |
| model panel | LQ043T3LX02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.3 inch |
| resolusi | 480×272(RGB) , WQVGA |
| mod paparan | ASV, Normally Black, Transmissive |
| kawasan aktif | 95.04×53.856 mm |
| garis besar | 103.6×64.35 mm |
| permukaan | Antireflection |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 1500:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193185% |
| masa tindak balas | 16/8 (Typ.)(Tr/Td) |
| sudut pandangan | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 7S1PWLEDWithout Driver |
| voltan masukan | 1.8/1.8/5.6/16.5/-11.0V (Typ.)(VCC/VCCRX/VS/VGH/VGL) |
| permohonan | PND |
