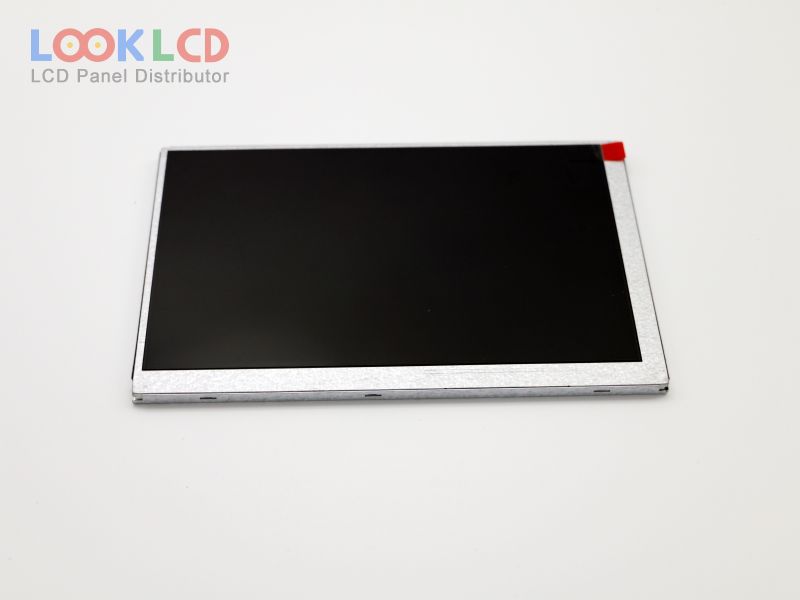

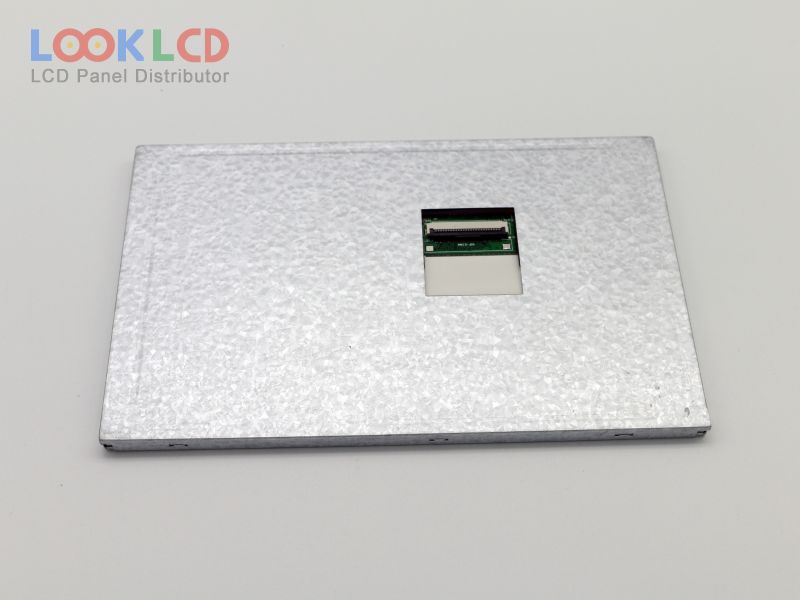

| Nombor Bahagian | YX070DK02 |
| Jenama | SEBO |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 500 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SEBO |
| model panel | YX070DK02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 152.4×91.44 mm |
| garis besar | 165×104×5.8 mm |
| permukaan | Antiglare |
| kecerahan | 500 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S9PWLEDEmbedded (LED Driver) |
| antara muka isyarat | TTL (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.)(VCC) |
| permohonan | CNS |
| A070FW01 | AUO | 7.0 | 480×234 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| DLC0700JBG-T-6 | Other | 7.0 | 1024×600 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LQ070Y3LW01 | SHARP | 7.0 | 800×480 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
| YX070DK02 | SEBO | 7.0 | 800×480 |
| AC070MD01 | Mitsubishi | 7.0 | 800×480 |
| AT065TN14 | Innolux | 6.5 | 800×480 |
| C070VW04 V0 | AUO | 7.0 | 800×480 |
| DLC1010AZG-1 | Other | 10.1 | 1024×600 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LA070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB080WV4-TD02 | LG Display | 8.0 | 800×480 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| PA050XSG | E Ink | 5.0 | 320×234 |
| YX090DKN01.0 | SEBO | 9.0 | 1280×720 |
