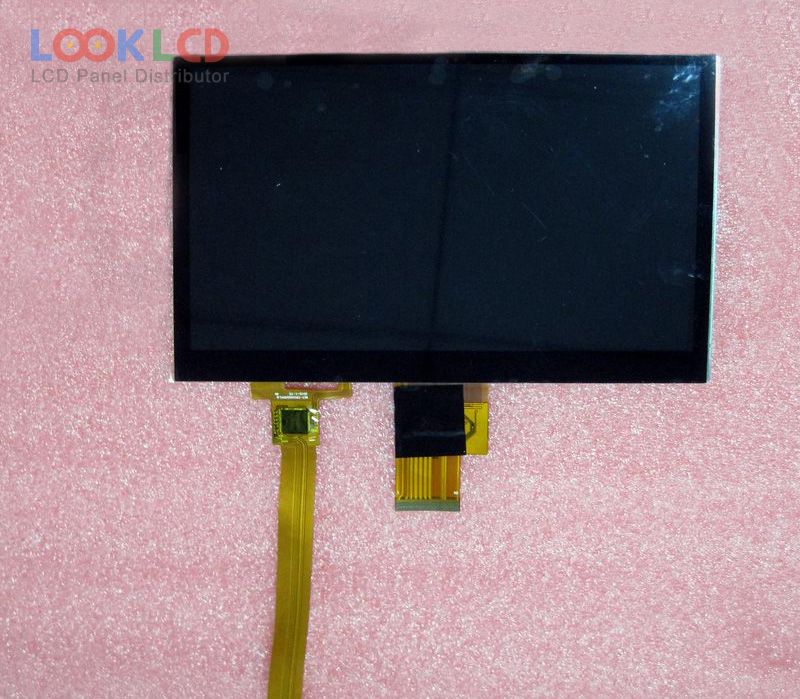

| Nombor Bahagian | DLC0700JBG-T-6 |
| Jenama | Other |
| Saiz | 7.0 |
| Permohonan | IA |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 430 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | DLC |
| model panel | DLC0700JBG-T-6 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 154.21×85.92 mm |
| garis besar | 165.75×102.05×5.05 mm |
| permukaan | |
| kecerahan | 430 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193150% |
| masa tindak balas | 20 (Typ.)(Tr+Td) |
| sudut pandangan | 65/65/65/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S10PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
