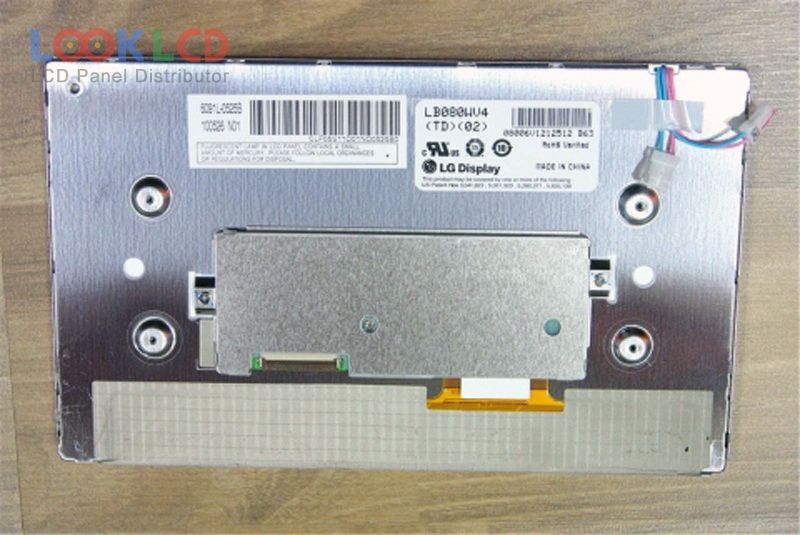

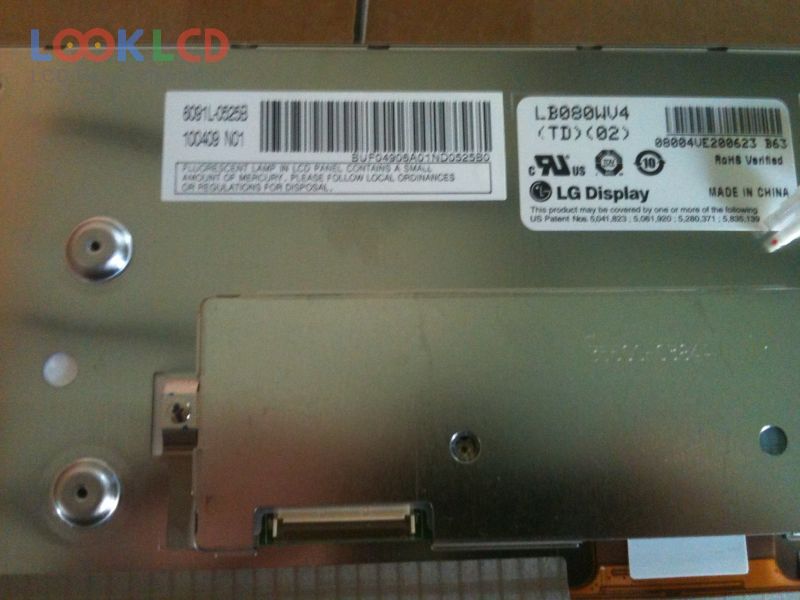

| Nombor Bahagian | LB080WV4-TD02 |
| Jenama | LG Display |
| Saiz | 8.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 600 |
| CR | 400:1 |
| Warna | 262K |
| Lampu latar | CCFL |
| Antara muka | TTL |
| jenama panel | LG.Philips LCD |
| model panel | LB080WV4-TD02 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 176.64×99.36 mm |
| garis besar | 199×121 mm |
| permukaan | Antiglare |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 400:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193145% |
| masa tindak balas | 10/20 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 2 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | CNS |
