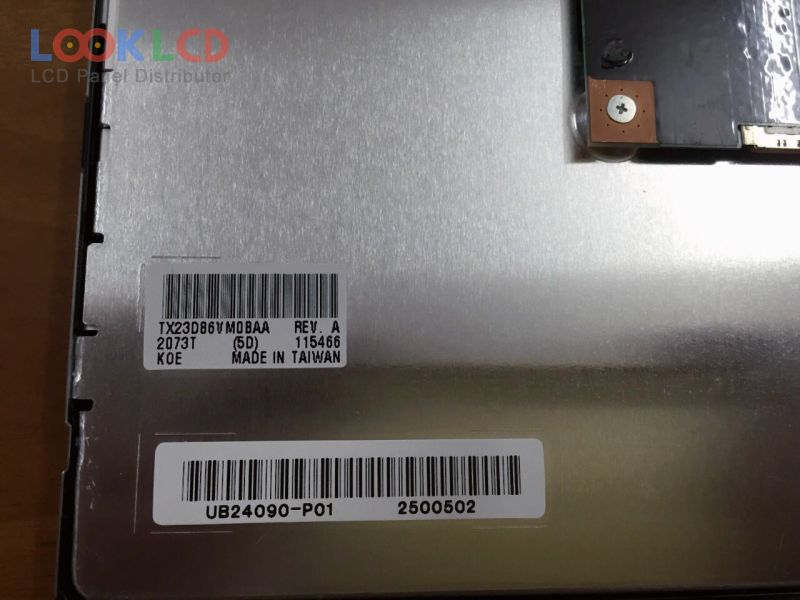

| Nombor Bahagian | TX23D86VM0BAA |
| Jenama | KOE |
| Saiz | 9.0 |
| Permohonan | IA |
| Resolusi | 1280×768 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 1000:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HITACHI |
| model panel | TX23D86VM0BAA |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.0 inch |
| resolusi | 1280(RGB)×768 , WXGA |
| mod paparan | IPS NP, Normally Black, Transmissive |
| kawasan aktif | 193.92×116.352 mm |
| garis besar | 216×142 mm |
| permukaan | |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193172% |
| masa tindak balas | 22 (Typ.)(Tr+Td) |
| sudut pandangan | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 8-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
