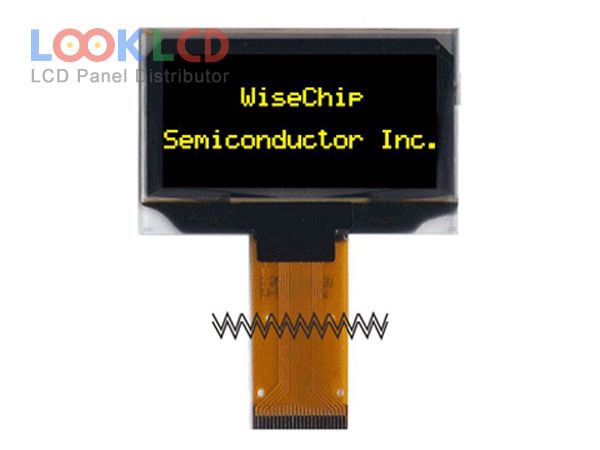

| Nombor Bahagian | UG-2864KSYMG01 |
| Jenama | WiseChip |
| Saiz | 1.54 |
| Permohonan | IA |
| Resolusi | 128×64 |
| Komposisi | OLED |
| Kecerahan | 150 |
| CR | 10000:1 |
| Warna | Mono(Yellow) |
| Lampu latar | self |
| Antara muka | CPU/SPI/I²C |
| jenama panel | WiseChip |
| model panel | UG-2864KSYMG01 |
| jenis panel | PM-OLED , OLED |
| saiz panel | 1.54 inch |
| resolusi | 128×64 |
| kawasan aktif | 35.052×17.516 mm |
| garis besar | 42.04×27.22 mm |
| permukaan | |
| kecerahan | 150 cd/m² (Typ.) |
| nisbah kontras | 10000 : 1 (Typ.) |
| warna paparan | Mono(Yellow) |
| sudut pandangan | |
| ic pemandu | Built-in SSD1309 |
| antara muka isyarat | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| permohonan | IA |
