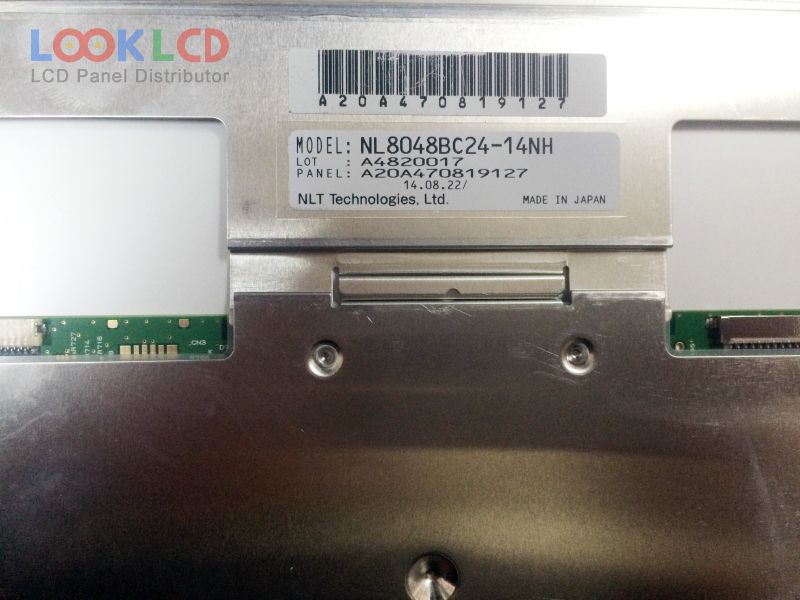

| Nombor Bahagian | NL8048BC24-14NH |
| Jenama | NLT |
| Saiz | 9.0 |
| Permohonan | IA |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | NEC |
| model panel | NL8048BC24-14NH |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | UA-SFT, Normally Black, Transmissive |
| kawasan aktif | 196.8×118.08 mm |
| permukaan | Anti Fingerprint + Antiglare |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| masa tindak balas | |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | WLED |
| antara muka isyarat | LVDS (1 ch, 6/8-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | IA |
