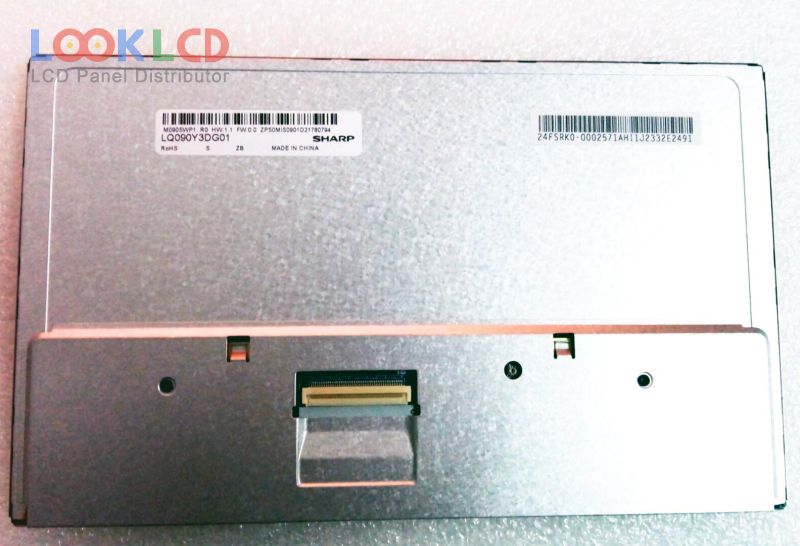

| Nombor Bahagian | LQ090Y3DG01 |
| Jenama | SHARP |
| Saiz | 9.0 |
| Permohonan | DPF |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 300 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | SHARP |
| model panel | LQ090Y3DG01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 198×111.696 mm |
| garis besar | 211.1×128.4 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 300 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (8-bit) |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit) |
| permohonan | DPF |
