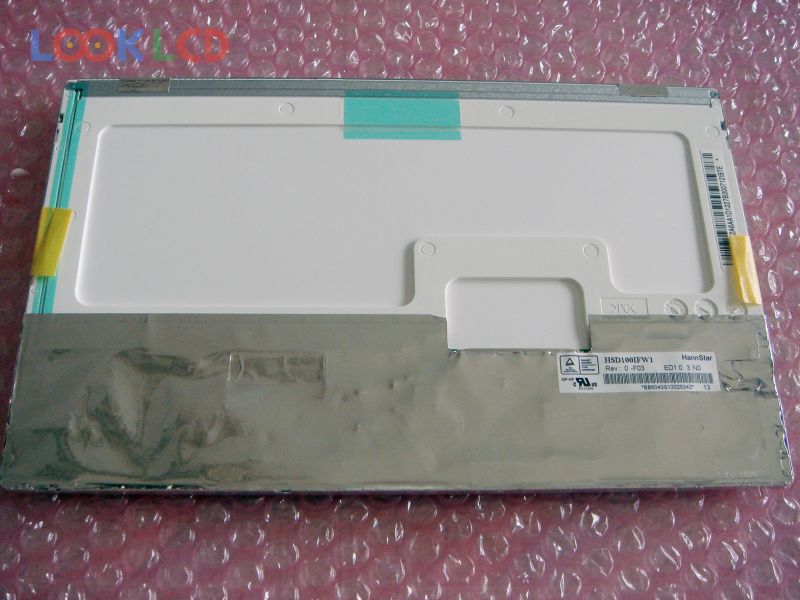

| Nombor Bahagian | HSD100IFW1-F03 |
| Jenama | HannStar |
| Saiz | 10.1 |
| Permohonan | DPF |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HannStar |
| model panel | HSD100IFW1-F03 1 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 220.416×129.15 mm |
| garis besar | 235×145.8×5.8 mm |
| permukaan | Glare (Haze 0%), Hard coating (3H) |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 5/20 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DPF |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| A104SN03 V0 | AUO | 10.4 | 800×600 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT102TN03 V.1 | Innolux | 10.2 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| HSD090ICW1-A00 | HannStar | 9.0 | 640×234 |
| HSD101PFW3-B00 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| TM060RDH03 | Tianma | 6.0 | 800×480 |
