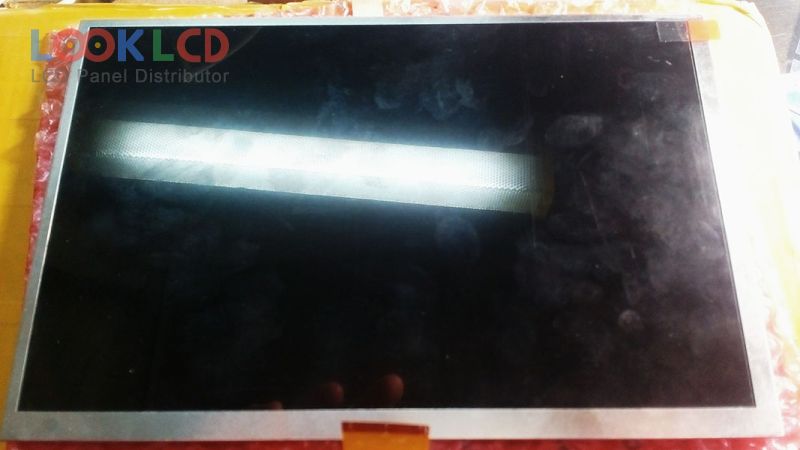

| Nombor Bahagian | AT090TN23 |
| Jenama | Innolux |
| Saiz | 9.0 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 340 |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CHIMEI INNOLUX |
| model panel | AT090TN23 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.0 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 193.92×121.2 mm |
| garis besar | 206.76×135.06 mm |
| permukaan | |
| kecerahan | 340 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 40 pins |
| voltan masukan | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| permohonan | PAD |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| CLAA101WJ03 XG | CPT | 10.1 | 1366×768 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LTL089CL02-W02 | Samsung | 8.9 | 1920×1200 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| TFT08925601600 | SEBO | 8.9 | 2560×1600 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
