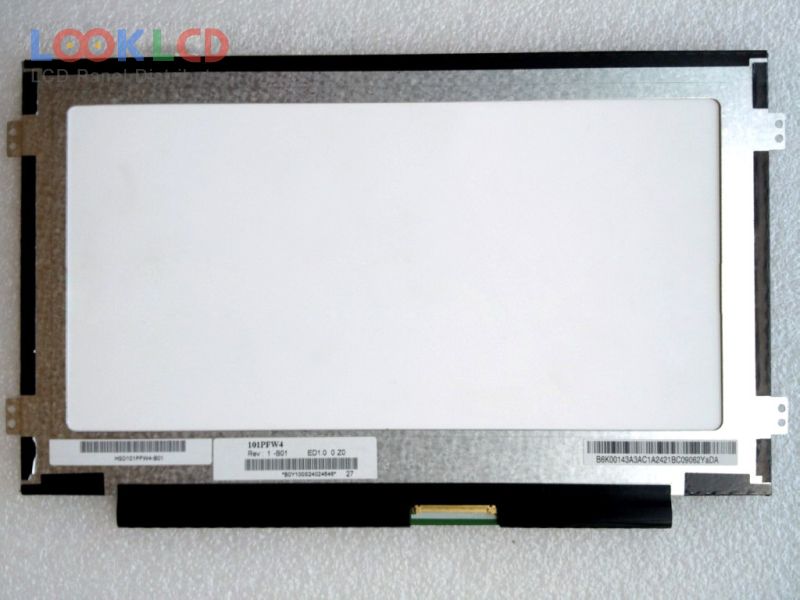

| Nombor Bahagian | HSD101PFW4-B01 |
| Jenama | HannStar |
| Saiz | 10.1 |
| Permohonan | DPF |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 200 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HannStar |
| model panel | HSD101PFW4-B01 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 222.72×125.28 mm |
| permukaan | |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| kekerapan | 60Hz |
| jenis lampu | WLED |
| antara muka isyarat | LVDS (1 ch, 6-bit) |
| permohonan | DPF |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| A104SN03 V0 | AUO | 10.4 | 800×600 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| PM070WM3 | E Ink | 7.0 | 800×480 |
| PM070WX1 | E Ink | 7.0 | 800×480 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
