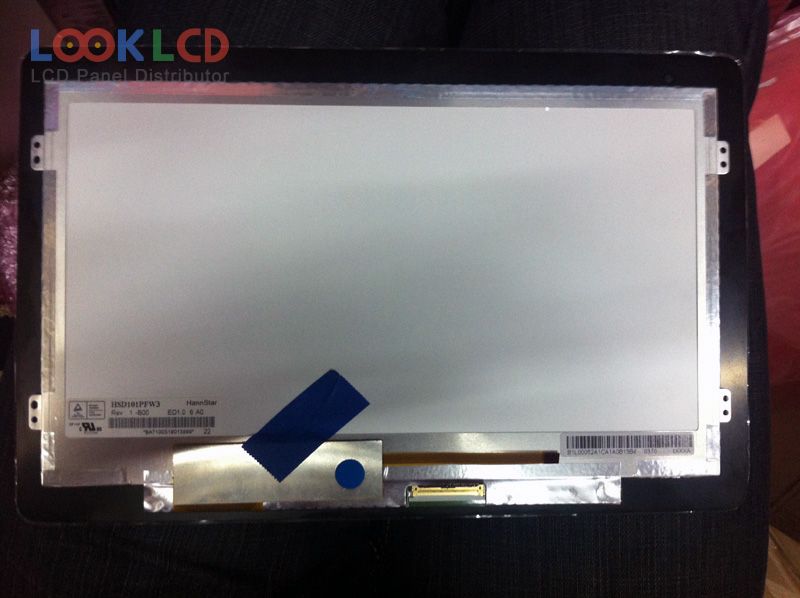

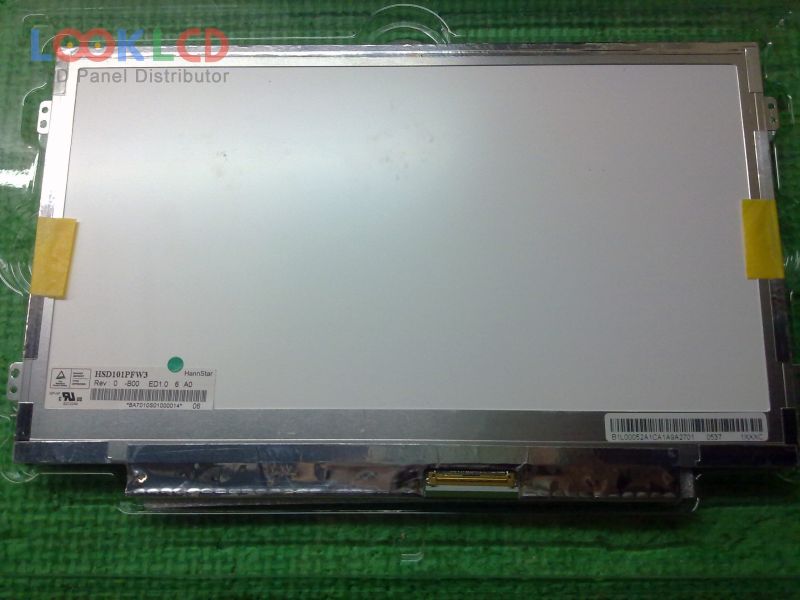

| Nombor Bahagian | HSD101PFW3-B00 |
| Jenama | HannStar |
| Saiz | 10.1 |
| Permohonan | DPF |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | 500:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | HannStar |
| model panel | HSD101PFW3-B00 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 222.72×125.28 mm |
| garis besar | 243×146.5×3.6 mm |
| permukaan | Antiglare, Hard coating (3H) |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 4/12 (Typ.)(Tr/Td) |
| sudut pandangan | 80/70/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | LVDS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | DPF |
