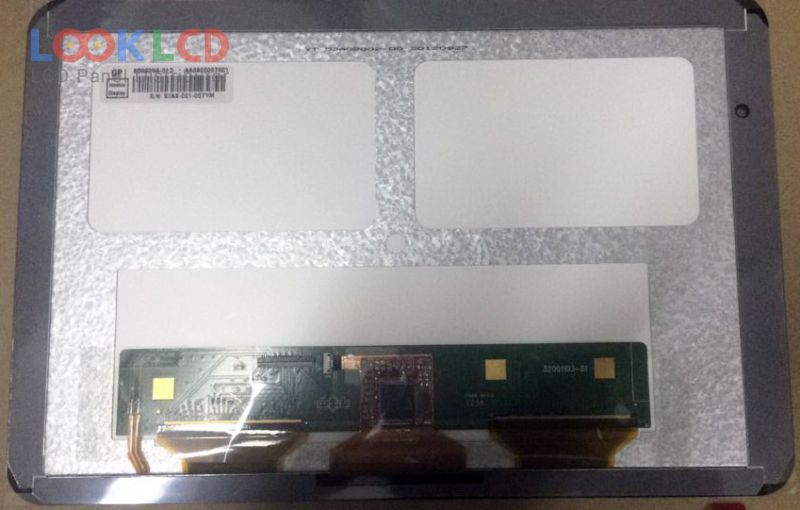

| Nombor Bahagian | ED090NA-01D |
| Jenama | Innolux |
| Saiz | 9.0 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | Assembly |
| Kecerahan | 200 |
| CR | 700:1 |
| Warna | 262K/16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CHIMEI INNOLUX |
| model panel | ED090NA-01D |
| jenis panel | a-Si TFT-LCD , Assembly |
| saiz panel | 9.0 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| kawasan aktif | 193.92×121.2 mm |
| garis besar | 235.12×156.4×7.84 mm |
| permukaan | Hard coating (7H) |
| kecerahan | 200 cd/m² (Typ.) |
| nisbah kontras | 700:1 (Typ.) |
| warna paparan | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| sudut pandangan | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| antara muka isyarat | LVDS (1 ch, 6/8-bit), 51 pins |
| voltan masukan | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| permohonan | PAD |
