ELT256.120.90

ELT256.120.90

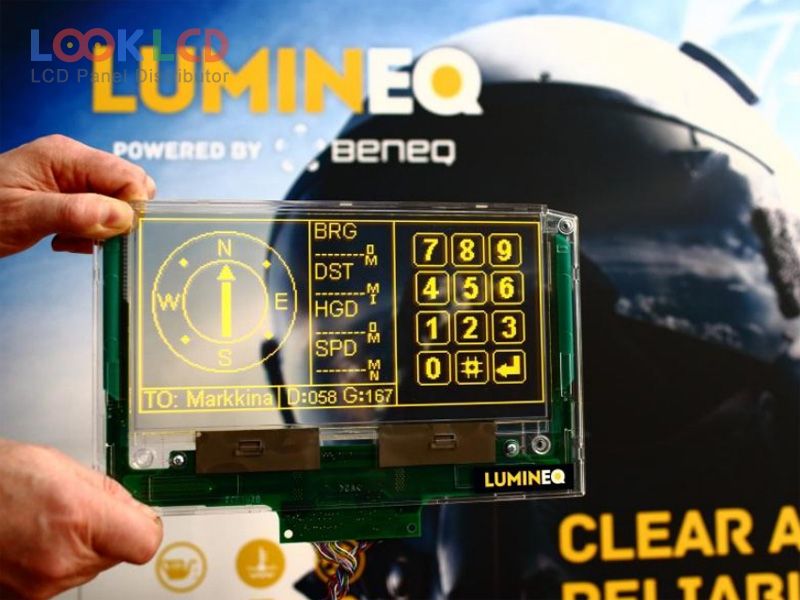

ELT256.120.90 thumb
Jenama
Lumineq
Saiz
10.0
Permohonan
IA
Resolusi
256×120
Komposisi
EL
Kecerahan
80
CR
Warna
Mono(Yellow)
Lampu latar
self
Antara muka
Parallel Data
In Stock
5204
Spesifikasi

Nombor Bahagian ELT256.120.90
JenamaLumineq
Saiz10.0
PermohonanIA
Resolusi256×120
KomposisiEL
Kecerahan80
CR
WarnaMono(Yellow)
Lampu latarself
Antara mukaParallel Data
jenama panelLumineq
model panelELT256.120.90
jenis panel EL , EL
saiz panel10.0 inch
resolusi256×120
kawasan aktif230.4×108 mm
garis besar280×193.4×15.1 mm
permukaan
kecerahan80 cd/m² (Typ.)
nisbah kontras
warna paparanMono(Yellow) (1-bit)
sudut pandangan
antara muka isyaratParallel Data (1ch, 2-bit), 16 pins
voltan masukan5.0/24V (Typ.)(Vl/Vh)
permohonanIA
