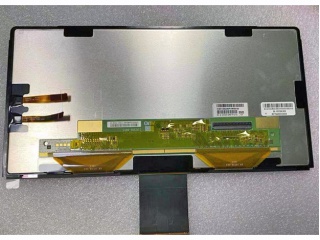

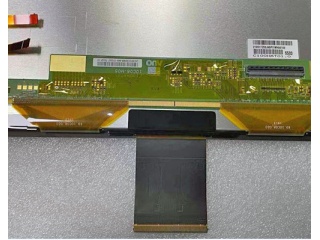

| Nombor Bahagian | C100HAT01.0 |
| Jenama | AUO |
| Saiz | 10.0 |
| Permohonan | Automotive Display |
| Resolusi | 1560×700 |
| Komposisi | LCM, a-Si TFT-LCD |
| Kecerahan | |
| CR | |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| pengilang | AUO |
| nama model | C100HAT01.0 |
| saiz skrin | 10.0 inch |
| jenis skrin | LCM, a-Si TFT-LCD |
| nombor piksel | 1560(RGB)×700 171PPI |
| susunan | RGB Vertical Stripe |
| kawasan aktif (mm) | 231.66 × 103.95 (H×V) |
| garis besar (mm) | 259.36 × 131.32 (H×V×D) |
| kawasan bezel (mm) | - |
| rawatan | Antiglare, Antireflection |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| tindak balas | 30 (Max.)(Tr+Td) ms |
| pandangan yang baik di | Symmetry |
| mod kerja | AHVA, Normally Black, Transmissive |
| kedalaman warna | 16.7M |
| lampu latar | WLED |
| jisim | 375±38g |
| digunakan untuk | Automotive Display |
| kadar segar semula | 60Hz |
| skrin sentuh | - |
| Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
