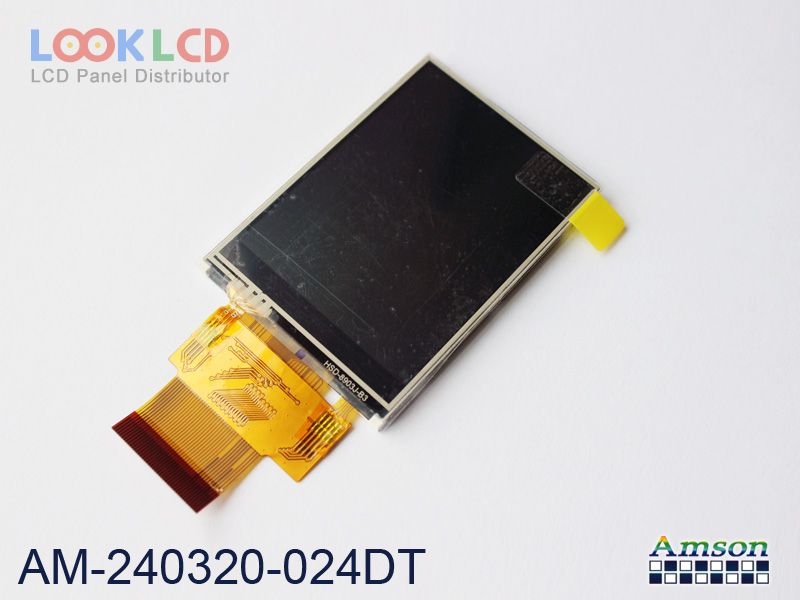

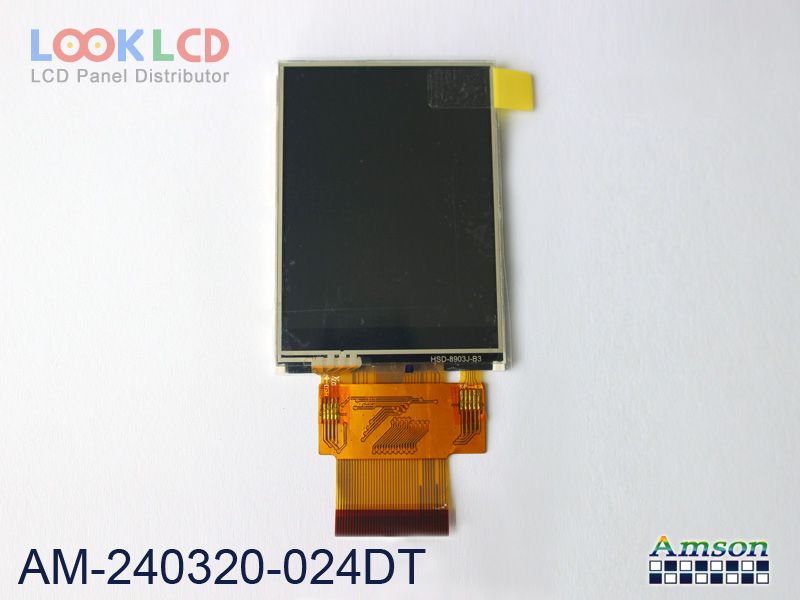

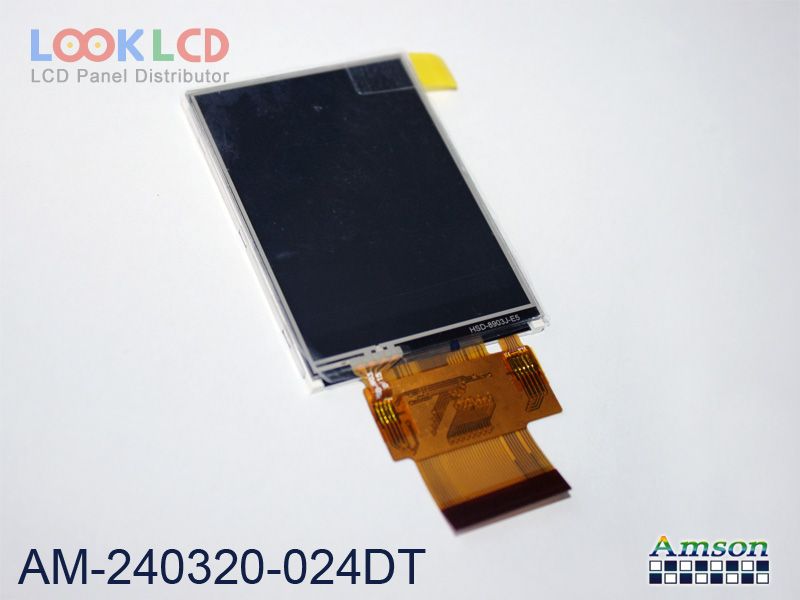

| Nombor Bahagian | AM-240320-024DT |
| Jenama | Other |
| Saiz | 2.4 |
| Permohonan | HHP |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | CPU |
| jenama panel | Amson |
| model panel | AM-240320-024DT |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.4 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 36.72×48.96 mm |
| garis besar | 42.72×60.26×3.8 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | 4 stringsWLEDWithout Driver |
| antara muka isyarat | 8/16-bit 8080 parallel, 40 pins |
| voltan masukan | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| permohonan | HHP |
