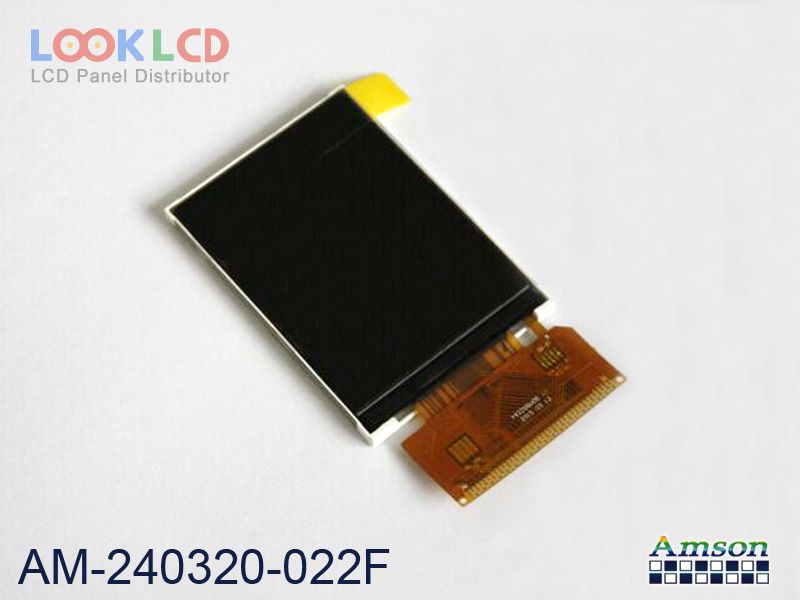

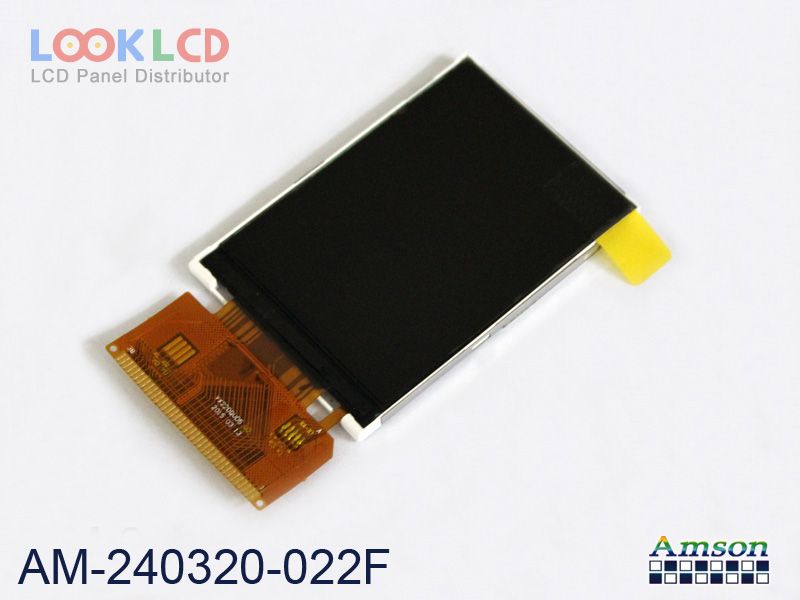

| Nombor Bahagian | AM-240320-022F |
| Jenama | Other |
| Saiz | 2.2 |
| Permohonan | HHP |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | CPU |
| jenama panel | Amson |
| model panel | AM-240320-022F |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.2 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 33.48×44.64 mm |
| garis besar | 38.38×59.19×2.6 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | 4 stringsWLEDWithout Driver |
| antara muka isyarat | 8/16-bit 8080 parallel, 38 pins |
| voltan masukan | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| permohonan | HHP |
| AM-240320-022F | Other | 2.2 | 240×320 |
| AM-240320-024DT | Other | 2.4 | 240×320 |
| COM22H2P16ULC | ORTUSTECH | 2.2 | 240×320 |
| CT022TN15 | Innolux | 2.2 | 176×220 |
| LTS220QC-F0J | Samsung | 2.2 | 176×220 |
| TM022GBH01 | Tianma | 2.2 | 176×220 |
| TM022HDH31 | Tianma | 2.2 | 240×320 |
| TM022HDHT1-05 | Tianma | 2.2 | 240×320 |
| TX06D15VM1EAA | KOE | 2.2 | 176×220 |
| 24QVF1J | SII | 2.4 | 240×320 |
| 35HVE1H | SII | 3.5 | 320×480 |
| COM32H3N74ULC | ORTUSTECH | 3.2 | 480×800 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| G050VVN01.0 | AUO | 5.0 | 480×800 |
| LQ043T1DG03 | SHARP | 4.3 | 480×272 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TFTMD030035 | JDI | 3.0 | 640×480 |
| TM030ZDHG01 | Tianma | 3.0 | 320×320 |
| TX09D30VM1CCA | KOE | 3.5 | 240×320 |
