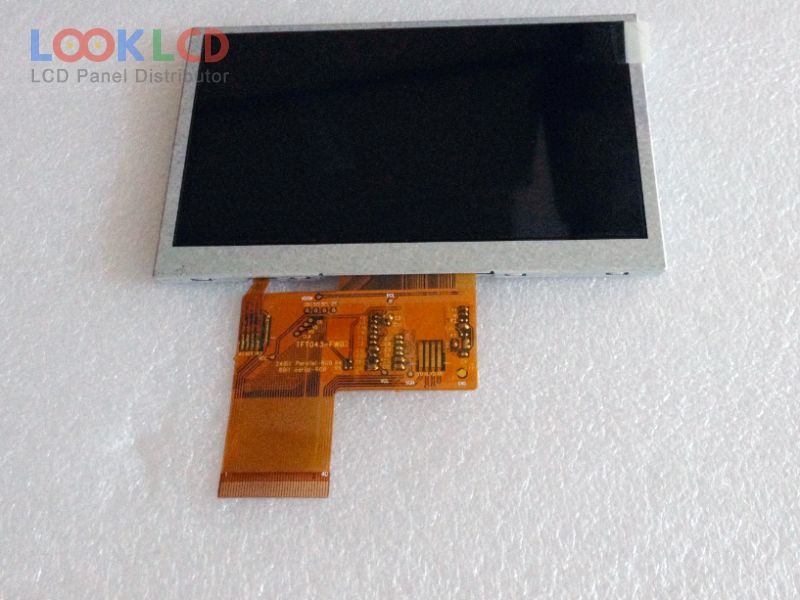

| Nombor Bahagian | YX-CM043-QN05-56 |
| Jenama | |
| Saiz | 4.3 |
| Permohonan | CNS |
| Resolusi | 480×272 |
| Komposisi | LCM |
| Kecerahan | 900 |
| CR | 500:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | |
| model panel | YX-CM043-QN05-56 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 4.3 inch |
| resolusi | 480(RGB)×272 , WQVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 95.04×53.856 mm |
| garis besar | 105.5×67.2 mm |
| permukaan | |
| kecerahan | 900 cd/m² (Typ.) |
| nisbah kontras | 500:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193153% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| jenis lampu | 8S2PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | CNS |
