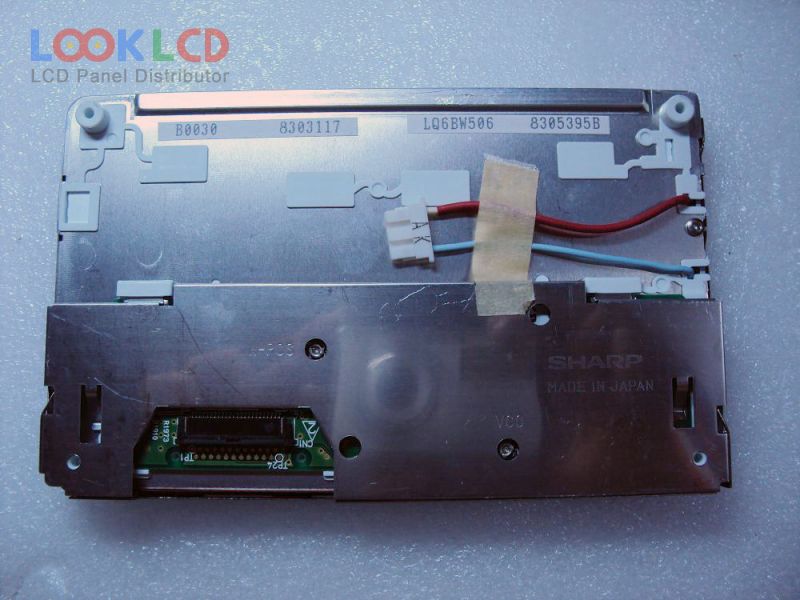

| Nombor Bahagian | LQ6BW506 |
| Jenama | SHARP |
| Saiz | 5.8 |
| Permohonan | CNS |
| Resolusi | 400×234 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 60:1 |
| Warna | |
| Lampu latar | CCFL |
| Antara muka | Analog |
| jenama panel | SHARP |
| model panel | LQ6BW506 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.8 inch |
| resolusi | 400(RGB)×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 127.2×71.8 mm |
| garis besar | 145×89 mm |
| permukaan | Antiglare, Antireflection |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 60:1 (Min.) |
| warna paparan | |
| masa tindak balas | 30/50 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| voltan masukan | 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) |
| permohonan | CNS |
