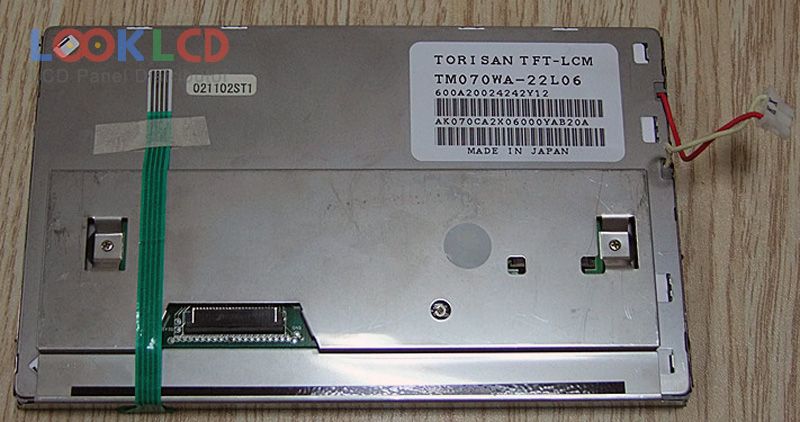

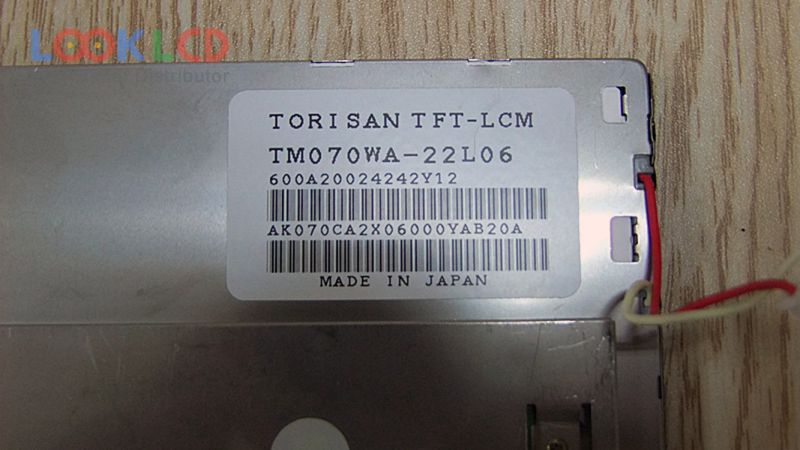

| Nombor Bahagian | TM070WA-22L06 |
| Jenama | SANYO |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 480×234 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 100:1 |
| Warna | |
| Lampu latar | CCFL |
| Antara muka | Analog |
| jenama panel | TORISAN |
| model panel | TM070WA-22L06 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 480(RGB)×234 |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 154.08×87.05 mm |
| garis besar | 167×102 mm |
| permukaan | Antiglare |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 100:1 (Min.) |
| warna paparan | |
| masa tindak balas | 30/20 (Typ.)(Tr/Td) |
| sudut pandangan | 60/60/30/40 (Max.)(CR≥5)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 1 pcsCCFL |
| antara muka isyarat | TFT Specific Analog RGB, 24 pins |
| voltan masukan | 5.3/15.0/-14V (Typ.)(VSH/VGH/VGL) |
| permohonan | CNS |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| CLAA069LA0FCW | CPT | 7.0 | 800×480 |
| EE070NA-01D | Innolux | 7.0 | 1024×600 |
| HSD070PWW1-C00 | HannStar | 7.0 | 1280×800 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LQ070T5GC01 | SHARP | 7.0 | |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| AM-800480-050D | Other | 5.0 | 800×480 |
| C080VW05 V0 | AUO | 8.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| HSD040I3N1-B00 | HannStar | 4.0 | 320×240 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| LQ080Y5DG02 | SHARP | 8.0 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| YXD101301000-60 | SEBO | 10.1 | 1024×600 |
