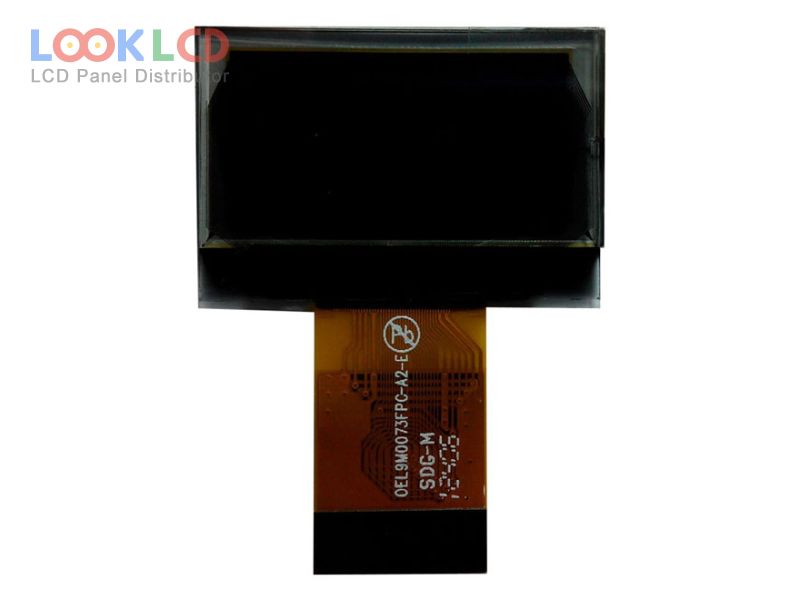

OEL9M0073-Y-E

OEL9M0073-Y-E
OEL9M0073-Y-E thumb
Jenama
Other
Saiz
1.0
Permohonan
IA
Resolusi
128×64
Komposisi
OLED
Kecerahan
85
CR
10000:1
Warna
Mono(Yellow)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
15139
Spesifikasi

Nombor Bahagian OEL9M0073-Y-E
JenamaOther
Saiz1.0
PermohonanIA
Resolusi128×64
KomposisiOLED
Kecerahan85
CR10000:1
WarnaMono(Yellow)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTRULY
model panelOEL9M0073-Y-E
jenis panel PM-OLED , OLED
saiz panel1.0 inch
resolusi128×64
kawasan aktif23.02×11.82 mm
garis besar30×20.16×1.6 mm
permukaan
kecerahan85 cd/m² (Typ.)
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Yellow) (1-bit)
sudut pandangan80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
ic pemanduCOG Built-in SSD1308Z
antara muka isyaratCPU/SPI/I²C, 20 pins
permohonanIA
