OEL9M0084-R-E

OEL9M0084-R-E

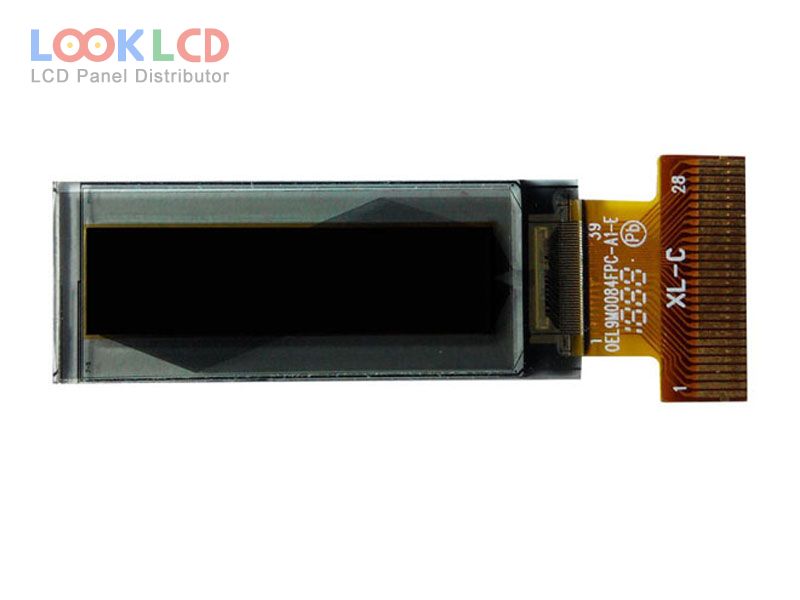

OEL9M0084-R-E thumb
Jenama
Other
Saiz
0.91
Permohonan
SW
Resolusi
128×32
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(Red)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
12913
Spesifikasi

Nombor Bahagian OEL9M0084-R-E
JenamaOther
Saiz0.91
PermohonanSW
Resolusi128×32
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(Red)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTRULY
model panelOEL9M0084-R-E
jenis panel PM-OLED , OLED
saiz panel0.91 inch
resolusi128×32
kawasan aktif22.38×5.58 mm
garis besar30×11.5×1.55 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Red) (1-bit)
sudut pandangan80/80/80/80 (Min.)(L/R/U/D)
kekerapan100Hz
ic pemanduCOG Built-in SH1103G
antara muka isyarat8-bit 6800/8080 parallel, SPI, I²C, 28 pins
voltan masukan3.0/3.7/10.0V (Typ.)(VDD1/VDD2/VPP)
rohs:
permohonanSW
