Other OEL9M0064-R-E lembaran data, spesifikasi, stok, aplikasi www.looklcd-my.com
LookLCD LookLCD


OEL9M0064-R-E

OEL9M0064-R-E

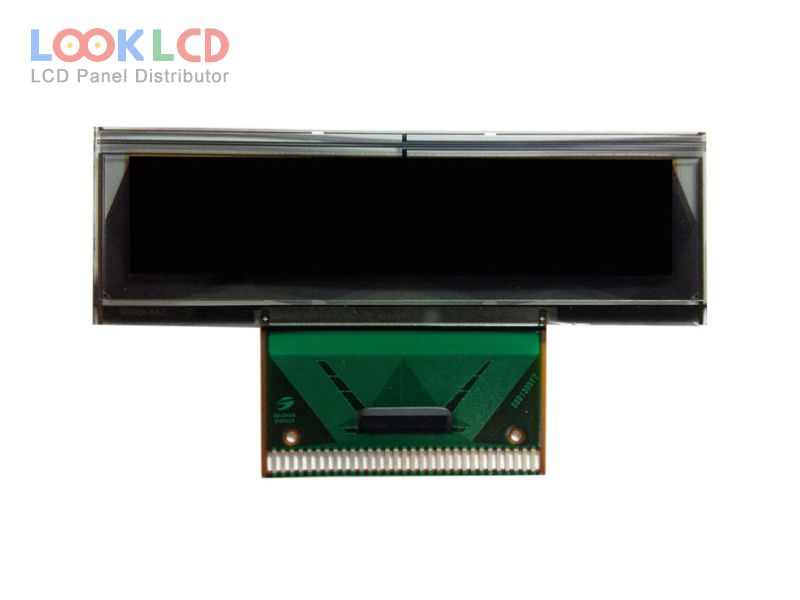

OEL9M0064-R-E thumb
Jenama
Other
Saiz
2.0
Permohonan
IA
Resolusi
128×32
Komposisi
OLED
Kecerahan
CR
10000:1
Warna
Mono(Red)
Lampu latar
self
Antara muka
CPU/SPI/I²C
In Stock
7927
Spesifikasi

Nombor Bahagian OEL9M0064-R-E
JenamaOther
Saiz2.0
PermohonanIA
Resolusi128×32
KomposisiOLED
Kecerahan
CR10000:1
WarnaMono(Red)
Lampu latarself
Antara mukaCPU/SPI/I²C
jenama panelTRULY
model panelOEL9M0064-R-E
jenis panel PM-OLED , OLED
saiz panel2.0 inch
resolusi128×32
kawasan aktif50.535×10.695 mm
garis besar59×18.86×1.6 mm
permukaan
kecerahan
nisbah kontras10000 : 1 (Min.)
warna paparanMono(Red) (1-bit)
sudut pandangan80/80/80/80 (Min.)(CR≥10)(L/R/U/D)
kekerapan100Hz
ic pemanduTAB Built-in SSD1305T7R1
antara muka isyarat8-bit 6800/8080 parallel, SPI, I²C, 31 pins
permohonanIA
