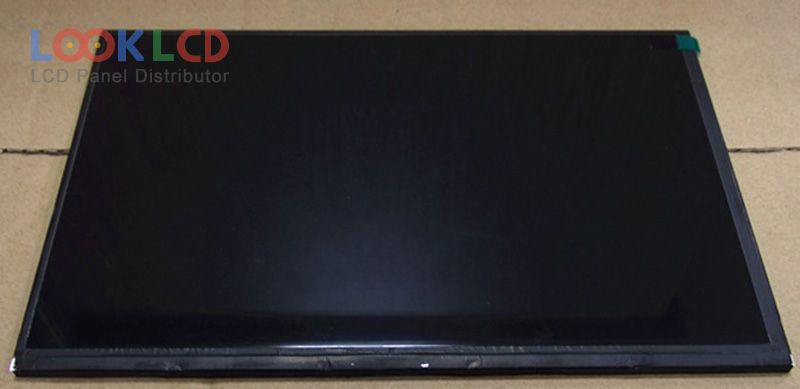

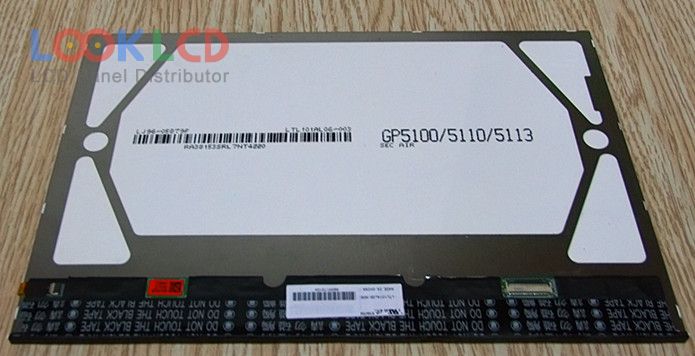

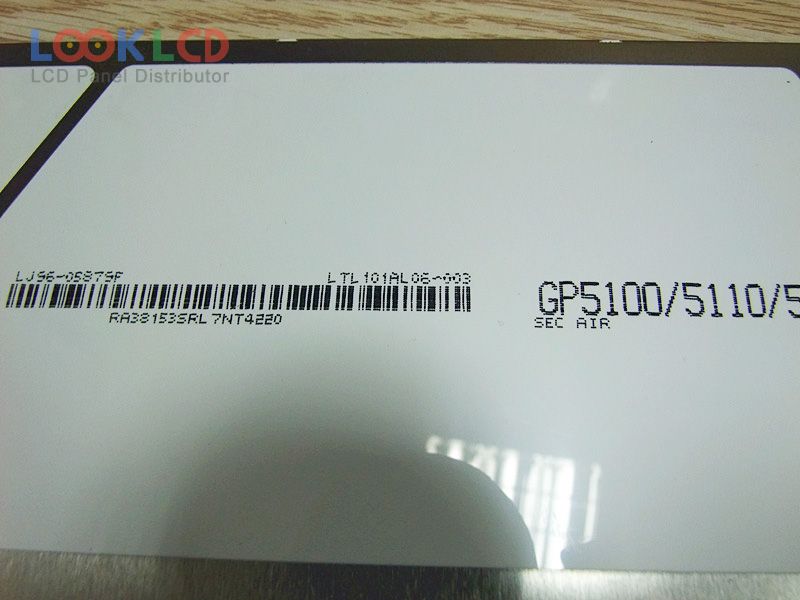

| Nombor Bahagian | LTL101AL06-003 |
| Jenama | Samsung |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 900:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTL101AL06-003 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| garis besar | 228.21×148.86 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193150% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit) |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
