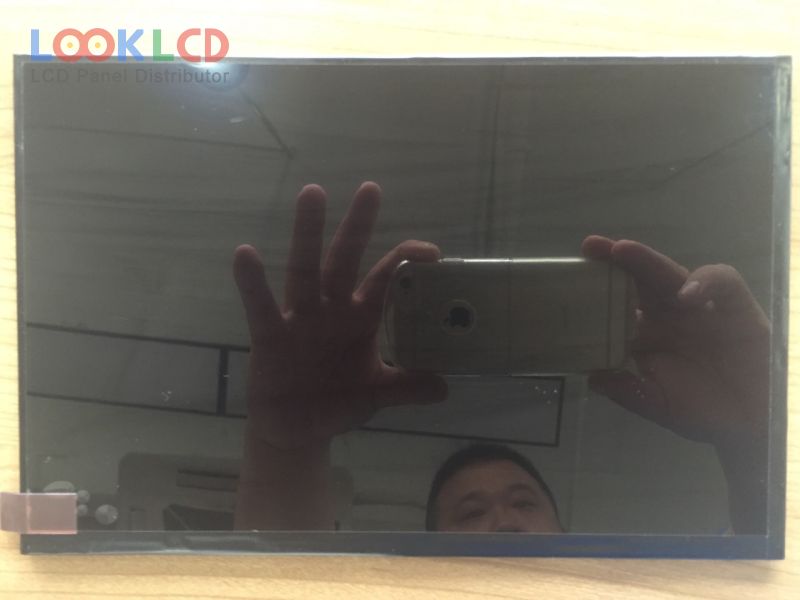

| Nombor Bahagian | TV101WXM-NP0 |
| Jenama | BOE |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | eDP |
| jenama panel | BOE |
| model panel | TV101WXM-NP0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193149% |
| masa tindak balas | |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLED |
| antara muka isyarat | eDP (1 Lane), 30 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
