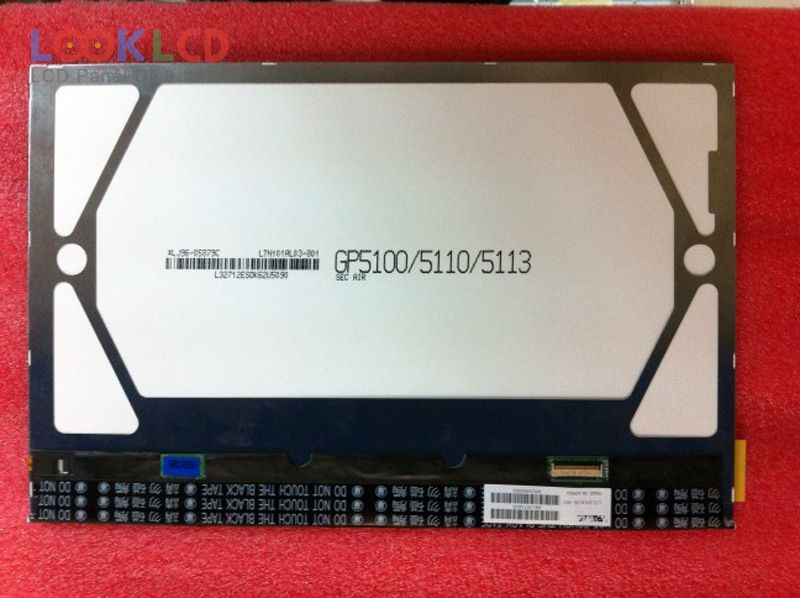

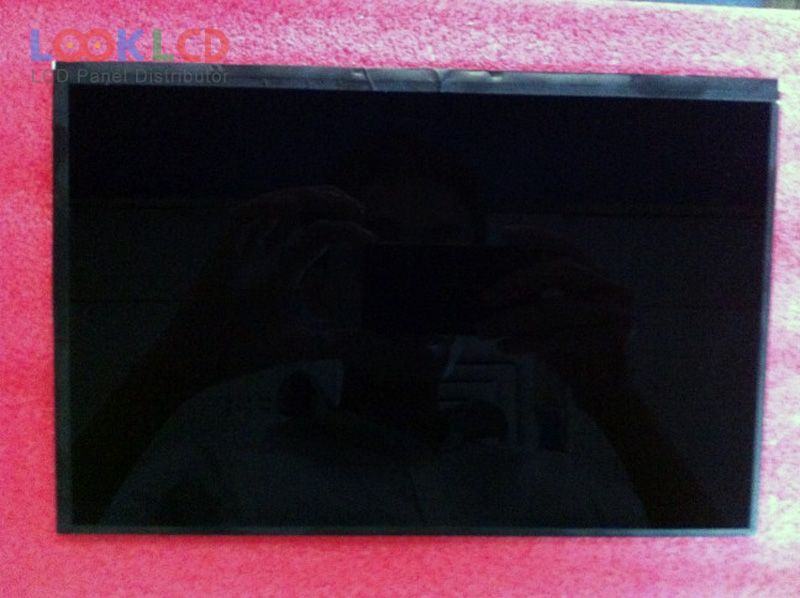

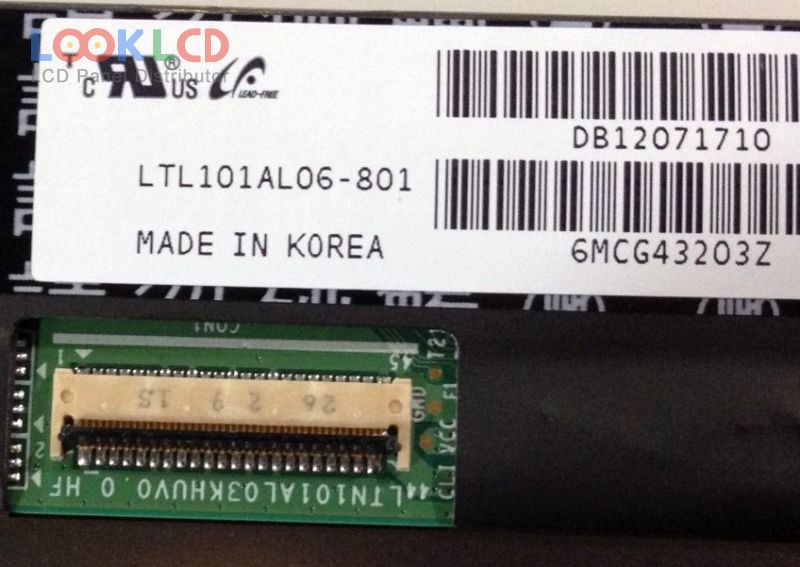

| Nombor Bahagian | LTL101AL06-801 |
| Jenama | Samsung |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 900:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | SAMSUNG |
| model panel | LTL101AL06-801 5 Compatible model |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| garis besar | 228.21×148.86×4.59 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193150% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 4 stringsWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 45 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-002 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-003 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-104 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B101EAN01.4 | AUO | 10.1 | 1280×800 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HX121WX1-111 | HYDIS | 12.1 | 1280×800 |
| LP097X02-SLG4 | LG Display | 9.7 | 1024×768 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| VVX07H005A10 | Panasonic | 7.0 | 800×1280 |
