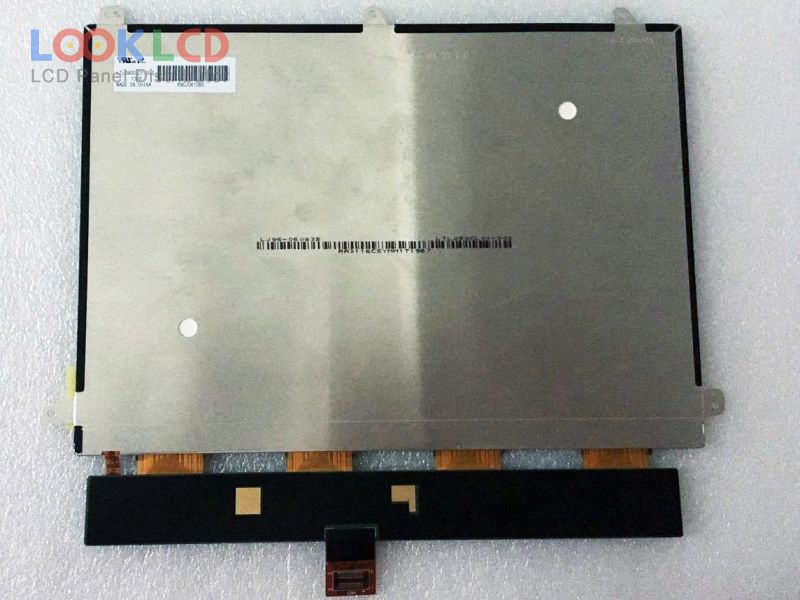

| Nombor Bahagian | LTL090CL01-002 |
| Jenama | Samsung |
| Saiz | 9.0 |
| Permohonan | PAD |
| Resolusi | 1920×1280 |
| Komposisi | LCM |
| Kecerahan | |
| CR | 800:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | SAMSUNG |
| model panel | LTL090CL01-002 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 9.0 inch |
| resolusi | 1920(RGB)×1280 |
| mod paparan | PLS, Normally Black, Transmissive |
| kawasan aktif | 190.08×126.72 mm |
| garis besar | 200.91×141.21×2.73 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 16 (Typ.)(Tr+Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLED |
| antara muka isyarat | MIPI (4 data lanes), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN10 | Innolux | 9.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| TX23D85VM0BAA | KOE | 9.0 | 1280×768 |
| YXD090TN02-40NM01 | SEBO | 9.0 | 1280×800 |
| B080XAN03.0 | AUO | 7.9 | 768×1024 |
| B101EAN01.6 | AUO | 10.1 | 1280×800 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| LD070WX4-SM01 | LG Display | 7.0 | 800×1280 |
| LP097X02-SLAA | LG Display | 9.7 | 1024×768 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
