B101UAN01.C

B101UAN01.C
B101UAN01.C
B101UAN01.C thumb B101UAN01.C thumb
Jenama
AUO
Saiz
10.1
Permohonan
PAD
Resolusi
1920×1200
Komposisi
LCM
Kecerahan
400
CR
800:1
Warna
16.7M
Lampu latar
WLED
Antara muka
eDP
In Stock
5200
Spesifikasi

Nombor Bahagian B101UAN01.C
JenamaAUO
Saiz10.1
PermohonanPAD
Resolusi1920×1200
KomposisiLCM
Kecerahan400
CR800:1
Warna16.7M
Lampu latarWLED
Antara mukaeDP
jenama panelAUO
model panelB101UAN01.C
jenis panel a-Si TFT-LCD , LCM
saiz panel10.1 inch
resolusi1920(RGB)×1200 , WUXGA
mod paparanAHVA, Normally Black, Transmissive
kawasan aktif216.81×135.5 mm
garis besar229.71×150.3×4.6 mm
permukaanGlare (Haze 0%)
kecerahan400 cd/m² (Typ.)
nisbah kontras800:1 (Typ.)
warna paparan16.7M (6-bit + Hi-FRC), CIE193150%
masa tindak balas15/10 (Typ.)(Tr/Td)
sudut pandangan85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuWLEDEmbedded (LED Driver)

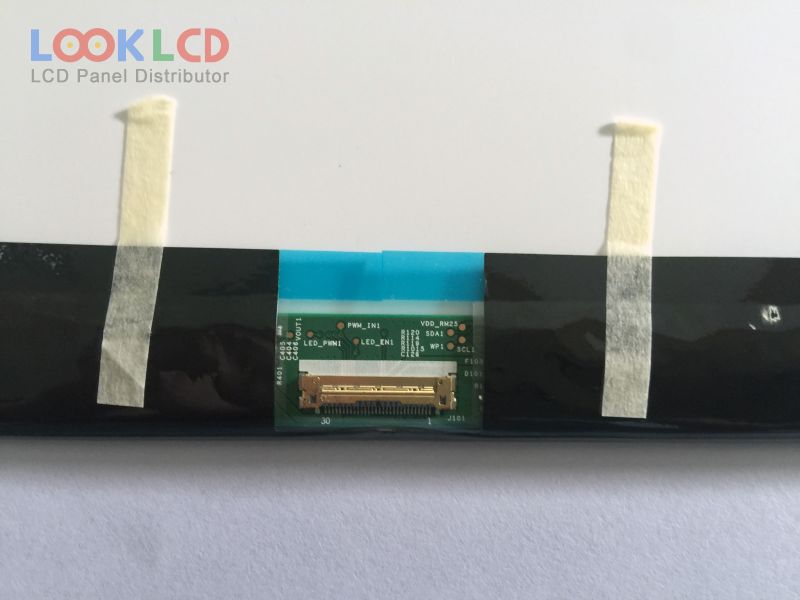

antara muka isyarateDP (2 Lanes), 30 pins
voltan masukan3.3V (Typ.)
permohonanPAD
Model Keluarga
B101UAN01.1 AUO 10.1 1920×1200
B101UAN01.7 HW0A AUO 10.1 1920×1200
B101UAN01.7 HW2A AUO 10.1 1920×1200
B101UAN01.9 AUO 10.1 1920×1200
B101UAN01.C AUO 10.1 1920×1200
B101UAN01.E AUO 10.1 1920×1200
B101UAN02.1 AUO 10.1 1920×1200
B101UAN07.0 AUO 10.1 1200×1920
B101UAN07.2 AUO 10.1 1200×1920
B101UAT02.1 AUO 10.1 1920×1200
