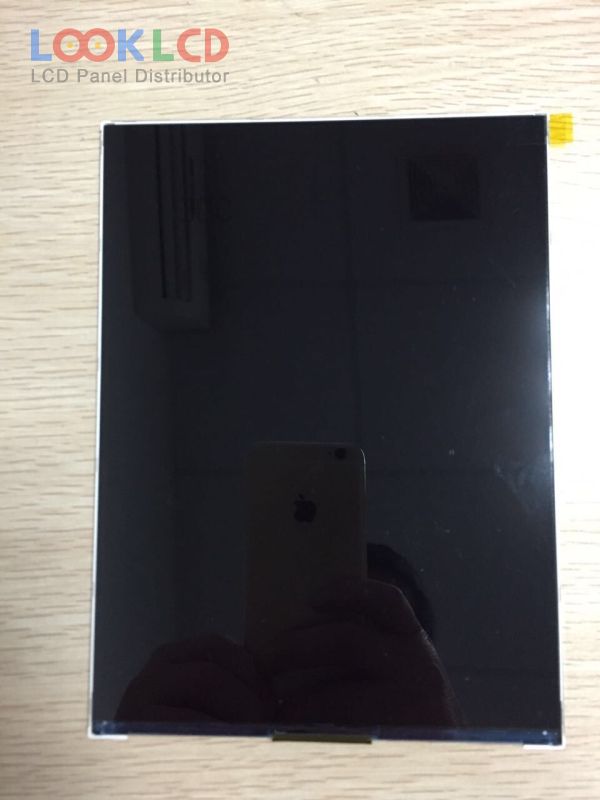

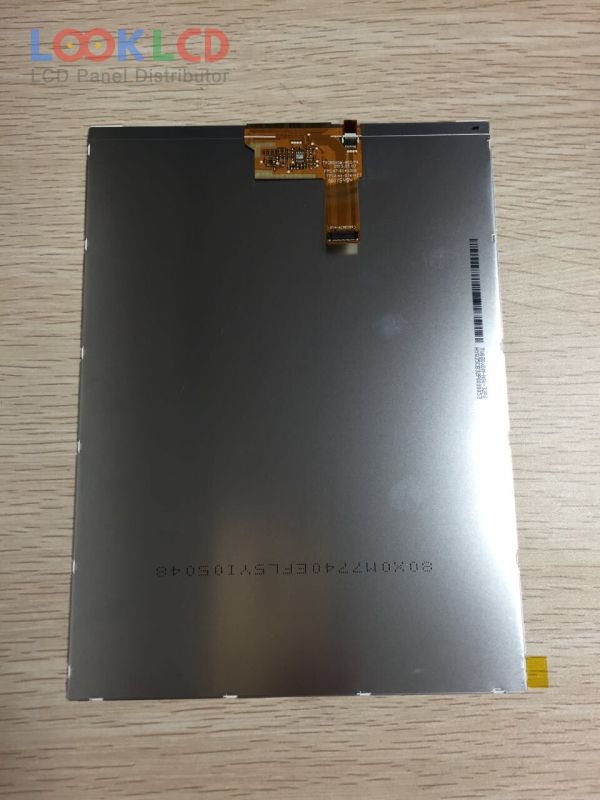

| Nombor Bahagian | TV080X0M-NS0 |
| Jenama | BOE |
| Saiz | 8.0 |
| Permohonan | PAD |
| Resolusi | 768×1024 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | BOE |
| model panel | TV080X0M-NS0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 768(RGB)×1024 , XGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 121.882×162.509 mm |
| garis besar | 128.142×173.739 mm |
| permukaan | |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193171% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 8S3PWLEDWithout Driver |
| antara muka isyarat | MIPI (4 data lanes), 34 pins |
| voltan masukan | 1.8/5.4/-5.4V (Typ.)(Vio/Vsn/Vsp) |
| permohonan | PAD |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| DLC0800AIG-2 | Other | 8.0 | 800×480 |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| TV080X0M-NS0 | BOE | 8.0 | 768×1024 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| BP101WX1-300 | BOE | 10.1 | 1280×800 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| LQ097L1JY01 | SHARP | 9.7 | 2048×1536 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| N080ICE-GB1 | Innolux | 8.0 | 800×1280 |
| N080JCE-G41 | Innolux | 8.0 | 1200×1920 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
