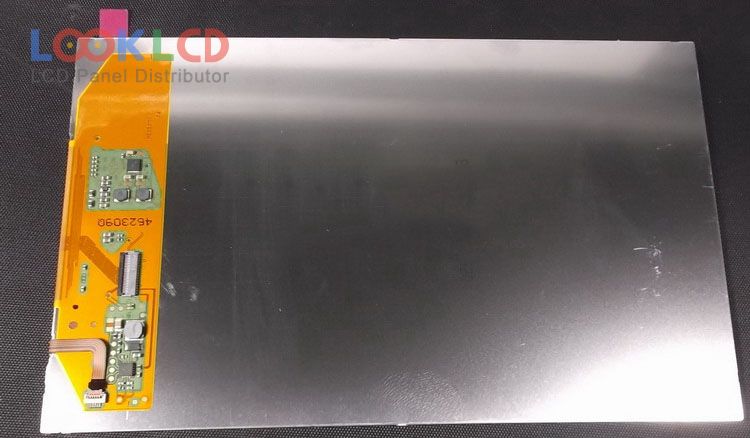

| Nombor Bahagian | LT070ME05000 |
| Jenama | JDI |
| Saiz | 7.0 |
| Permohonan | PAD |
| Resolusi | 1200×1920 |
| Komposisi | LCM |
| Kecerahan | 450 |
| CR | 1100:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | MIPI |
| jenama panel | JDI |
| model panel | LT070ME05000 |
| jenis panel | LTPS TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1200(RGB)×1920 , WUXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 94.5×151.2 mm |
| garis besar | 98.7×160.8×3.67 mm |
| permukaan | |
| kecerahan | 450 cd/m² (Typ.) |
| nisbah kontras | 1100:1 (Typ.) |
| warna paparan | 16.7M (8-bit), CIE193172% |
| masa tindak balas | |
| sudut pandangan | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S4PWLEDEmbedded (LED Driver) |
| antara muka isyarat | MIPI (4 data lanes), 31 pins |
| voltan masukan | 1.8/3.0/3.0V (Typ.)(IOVCC/VDD/VDDP) |
| permohonan | PAD |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| CLAA069LB02CW | CPT | 7.0 | 800×480 |
| CLAA070NJ01CW | CPT | 7.0 | 1024×600 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HV070WS1-101 | HYDIS | 7.0 | 1024×600 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LT070ME05000 | JDI | 7.0 | 1200×1920 |
| LTA070B2C0F | TOSHIBA | 7.0 | |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| PM070WX5 | E Ink | 7.0 | 800×480 |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| B080XAT01.1 | AUO | 7.9 | 768×1024 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101XAN02.0 | AUO | 10.1 | 1366×768 |
| CLAA101FP01 | CPT | 10.1 | 1920×1200 |
| EJ101IA-01C | Innolux | 10.1 | 1280×800 |
| HX104X01-210 | HYDIS | 10.4 | 1024×768 |
| LP097QX1-SPC2 | LG Display | 9.7 | 2048×1536 |
| LTN121AP05-302 | Samsung | 12.1 | 1280×800 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
