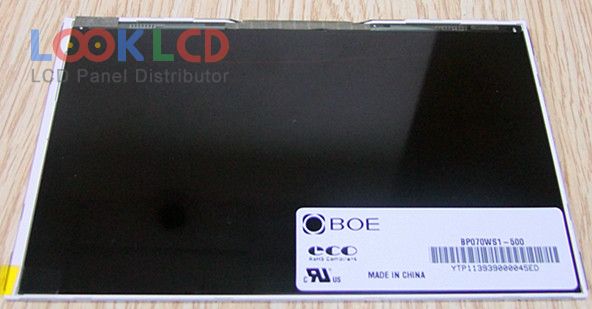

| Nombor Bahagian | BP070WS1-500 |
| Jenama | BOE |
| Saiz | 7.0 |
| Permohonan | PAD |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 900:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | BOE |
| model panel | BP070WS1-500 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 153.6×90 mm |
| garis besar | 164.05×100.86 mm |
| permukaan | Hard coating (3H) |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 900:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193150% |
| masa tindak balas | 30 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 5S4PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 31 pins |
| voltan masukan | 3.7V (Typ.) |
| permohonan | PAD |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| HV070WS1-105 | HYDIS | 7.0 | 1024×600 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| BP080WX7-100 | BOE | 8.0 | 1280×800 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| LD070WU2-SH01 | LG Display | 7.0 | 1200×1920 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LTL101AL06-W14 | Samsung | 10.1 | 1280×800 |
| LTN101AL01-F01 | Samsung | 10.1 | 1280×800 |
| LTN101AL03-801 | Samsung | 10.1 | 1280×800 |
| M101NWWB R6 | IVO | 10.1 | 1280×800 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
