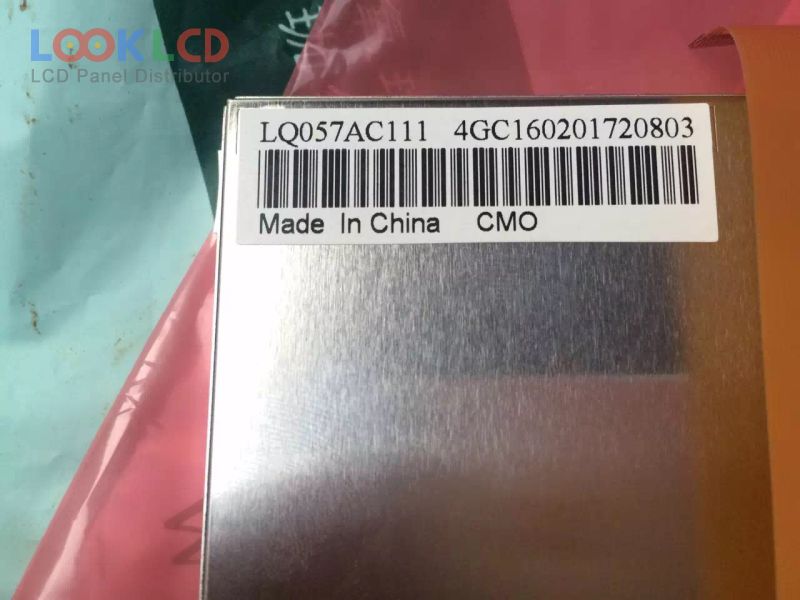

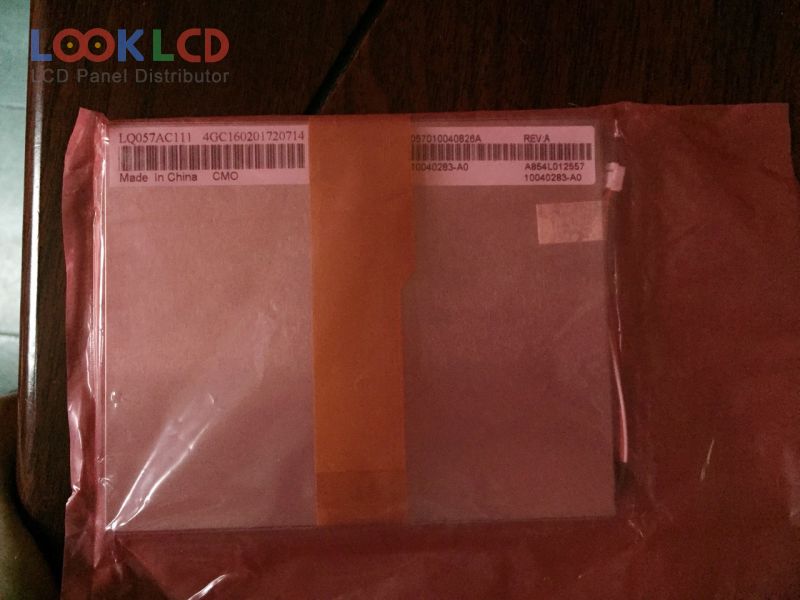

| Nombor Bahagian | LQ057AC111 |
| Jenama | Other |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 350 |
| CR | 200:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | Parallel/Serial |
| jenama panel | CHILIN |
| model panel | LQ057AC111 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 115.2×86.4 mm |
| garis besar | 126×101.55 mm |
| permukaan | Antiglare |
| kecerahan | 350 cd/m² (Typ.) |
| nisbah kontras | 200:1 (Typ.) |
| warna paparan | 16.7M |
| masa tindak balas | 15/35 (Typ.)(Tr/Td) |
| sudut pandangan | 65/65/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S7PWLEDWithout Driver |
| antara muka isyarat | Digital RGB (8/24-bit), CCIR601/656, 50 pins |
| voltan masukan | 3.3/5.0V (Typ.)(VDD/AVDD) |
| permohonan | IA |
