HSD101PWW1-A00 Rev.4

HSD101PWW1-A00 Rev.4

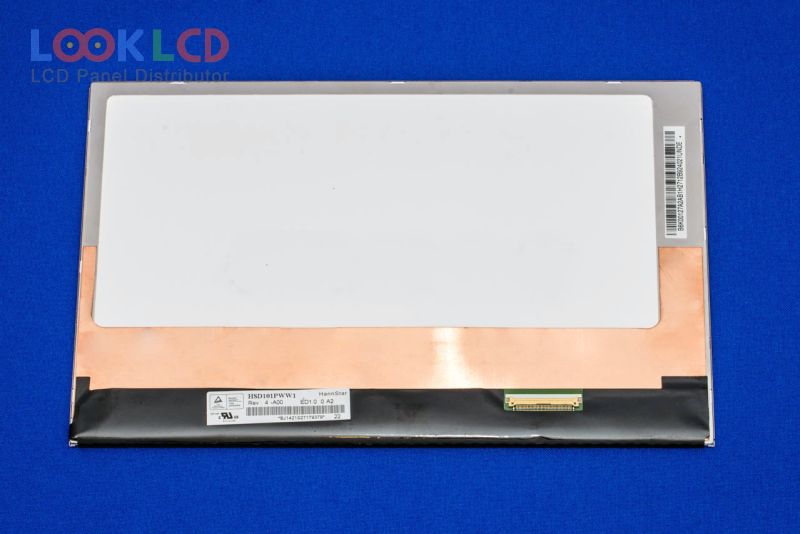

HSD101PWW1-A00 Rev.4 thumb
Jenama
HannStar
Saiz
10.1
Permohonan
PAD
Resolusi
1280×800
Komposisi
LCM
Kecerahan
350
CR
800:1
Warna
262K
Lampu latar
WLED
Antara muka
LVDS
In Stock
2500
Spesifikasi

Nombor Bahagian HSD101PWW1-A00 Rev.4
JenamaHannStar
Saiz10.1
PermohonanPAD
Resolusi1280×800
KomposisiLCM
Kecerahan350
CR800:1
Warna262K
Lampu latarWLED
Antara mukaLVDS
jenama panelHannStar
model panelHSD101PWW1-A00 Rev.4
jenis panel a-Si TFT-LCD , LCM
saiz panel10.1 inch
resolusi1280(RGB)×800 , WXGA
mod paparanHS-IPS, Normally Black, Transmissive
kawasan aktif216.96×135.6 mm
garis besar229.46×149.2×5.2 mm
permukaanGlare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
kecerahan350 cd/m² (Typ.)
nisbah kontras800:1 (Typ.)
warna paparan262K (6-bit), CIE193145%
masa tindak balas25 (Typ.)(Tr+Td)
sudut pandangan89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
kekerapan60Hz
jenis lampuWLEDEmbedded (LED Driver)
antara muka isyaratLVDS (1 ch, 6-bit), 40 pins
voltan masukan3.3V (Typ.)
permohonanPAD
