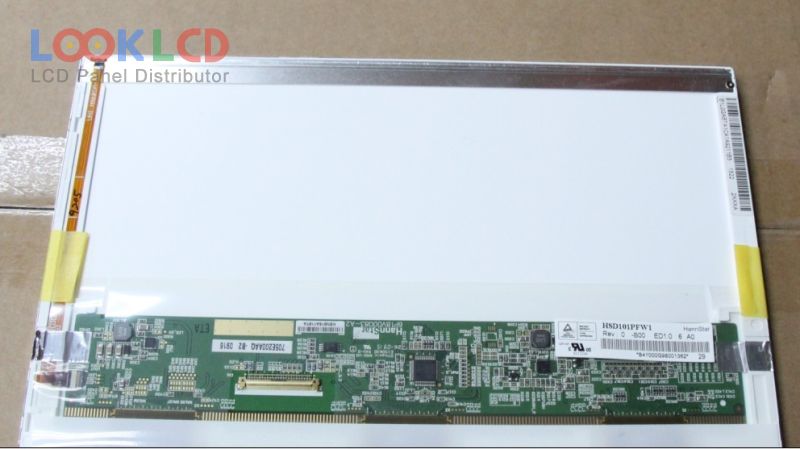

| Nombor Bahagian | HSD101PFW1-B00 |
| Jenama | HannStar |
| Saiz | 10.1 |
| Permohonan | |
| Resolusi | 1024×576 |
| Komposisi | LCM |
| Kecerahan | 220 |
| CR | |
| Warna | |
| Lampu latar | |
| Antara muka | LVDS |
| jenama panel | HannStar |
| model panel | HSD101PFW1-B00 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1024(RGB)×576 , WSVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 222.72×125.28 mm |
| garis besar | 235×143 mm |
| permukaan | |
| kecerahan | 220 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu |
