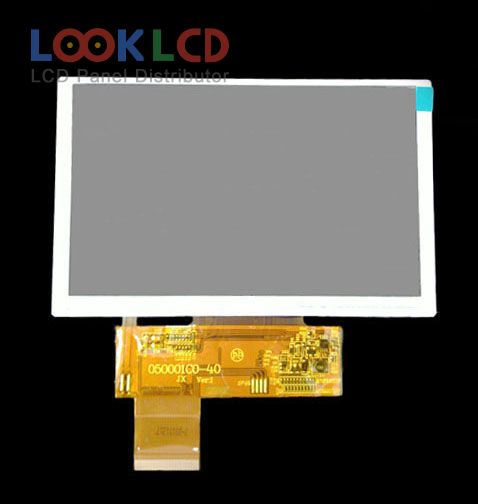

| Nombor Bahagian | TY05001C0-40 V1 |
| Jenama | Other |
| Saiz | 5.0 |
| Permohonan | |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | No Brand |
| model panel | TY05001C0-40 V1 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 5.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 108×64.8 mm |
| garis besar | 120.7×75.8 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | 6S1PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 2.8/2.8V (Typ.)(VDD/VCI) |
