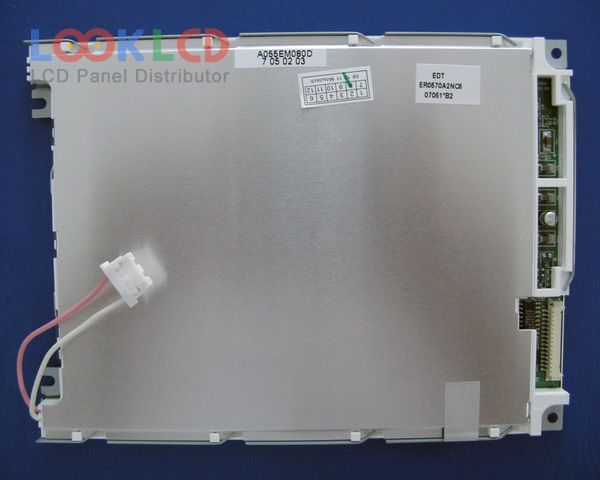

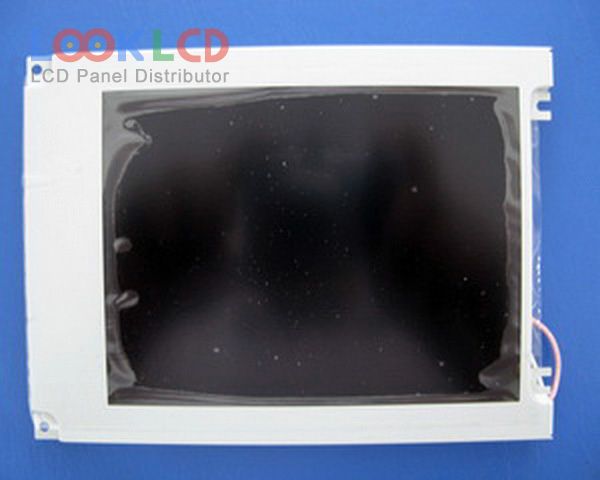

| Nombor Bahagian | ER0570A2NC6 |
| Jenama | EDT |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 180 |
| CR | 50:1 |
| Warna | Color |
| Lampu latar | CCFL |
| Antara muka | Parallel Data |
| jenama panel | EDT |
| model panel | ER0570A2NC6 |
| jenis panel | CSTN-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | STN, Normally Black, Transmissive |
| kawasan aktif | 115.2×86.4 mm |
| garis besar | 154.6×114.8×8.8 mm |
| permukaan | |
| kecerahan | 180 cd/m² (Typ.) |
| nisbah kontras | 50:1 (Typ.) |
| warna paparan | Color |
| masa tindak balas | 350/250 (Typ.)(Tr/Td) |
| sudut pandangan | 45/45/20/38 (Typ.)(CR≥2)(L/R/U/D) |
| kekerapan | 120Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel Data (8-bit), 15 pins |
| voltan masukan | 3.0/5.0V (Typ.)(VDD) |
| permohonan | IA |
