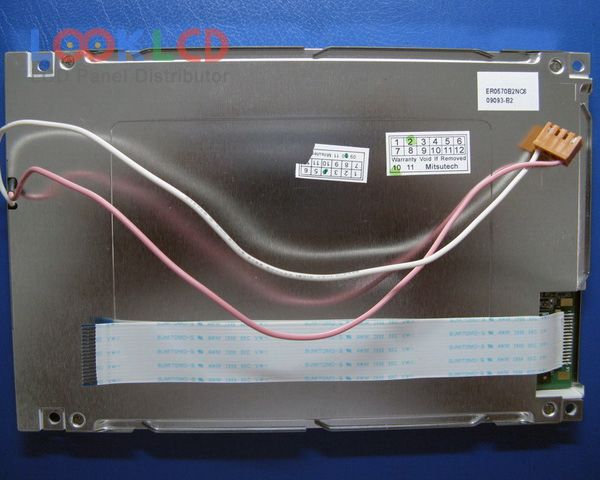

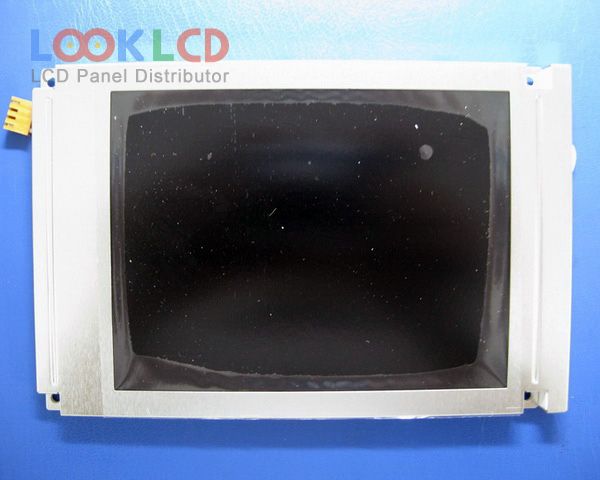

| Nombor Bahagian | ER0570B2NC6 |
| Jenama | EDT |
| Saiz | 5.7 |
| Permohonan | IA |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | 150 |
| CR | 50:1 |
| Warna | Color |
| Lampu latar | CCFL |
| Antara muka | Parallel Data |
| jenama panel | EDT |
| model panel | ER0570B2NC6 |
| jenis panel | CSTN-LCD , LCM |
| saiz panel | 5.7 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | STN, Normally Black, Transmissive |
| kawasan aktif | 115.17×86.37 mm |
| garis besar | 167×109×9.4 mm |
| permukaan | |
| kecerahan | 150 cd/m² (Typ.) |
| nisbah kontras | 50:1 (Typ.) |
| warna paparan | Color |
| masa tindak balas | 350/250 (Typ.)(Tr/Td) |
| sudut pandangan | 40/40/20/40 (Min.)(CR≥2)(L/R/U/D) |
| kekerapan | 120Hz |
| jenis lampu | 1 pcsCCFLWithout Driver |
| antara muka isyarat | Parallel Data (8-bit), 16 pins |
| voltan masukan | 3.3/5.0V (Typ.)(VDD) |
| permohonan | IA |
| ER057005NC6 | EDT | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| ER0570B2NC6 | EDT | 5.7 | 320×240 |
| ET057007DMU | EDT | 5.7 | 640×480 |
| G057QN01 V1 | AUO | 5.7 | 320×240 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| G057VGE-T01 | Innolux | 5.7 | 640×480 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| TM057QDHG02 | Tianma | 5.7 | 640×480 |
| AA084VG01 | Mitsubishi | 8.4 | 640×480 |
| AA121SK22 | Mitsubishi | 12.1 | 800×600 |
| AM-640480G2TNQW-31H | AMPIRE | 5.7 | 640×480 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8 | 128×64 |
| G121XN01 V0 | AUO | 12.1 | 1024×768 |
| G150XTN03.1 | AUO | 15.0 | 1024×768 |
| G190SVT01.0 | AUO | 19.0 | 1680×342 |
| TM057KDHG10 | Tianma | 5.7 | 320×240 |
| TX18D200VM0EAA | KOE | 7.0 | 1920×1080 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
