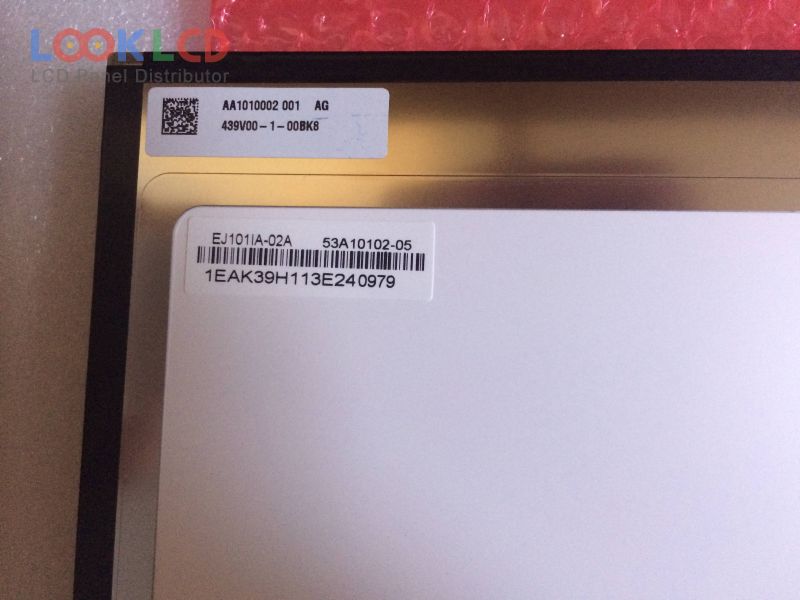

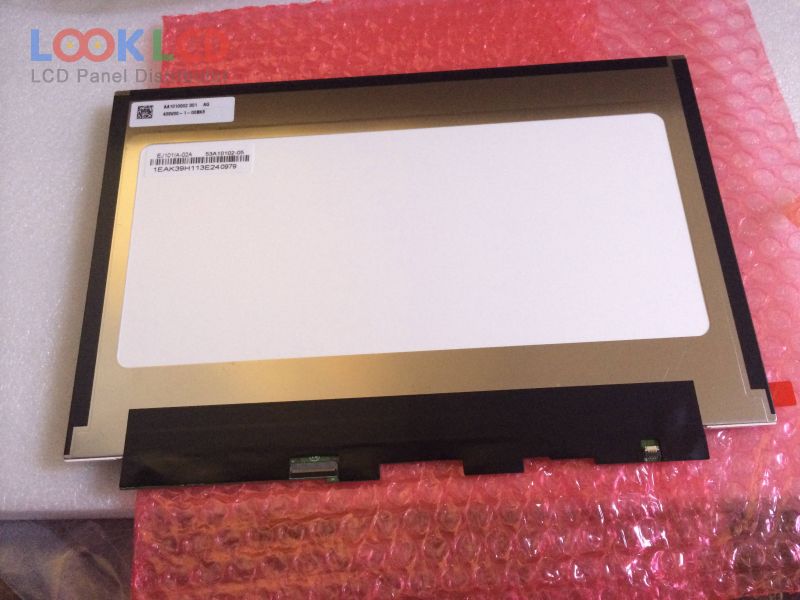

| Nombor Bahagian | EJ101IA-02A |
| Jenama | Innolux |
| Saiz | 10.1 |
| Permohonan | PAD |
| Resolusi | 1280×800 |
| Komposisi | LCM |
| Kecerahan | 400 |
| CR | 1000:1 |
| Warna | 16.2M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | CHIMEI INNOLUX |
| model panel | EJ101IA-02A |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 10.1 inch |
| resolusi | 1280(RGB)×800 , WXGA |
| mod paparan | IPS, Normally Black, Transmissive |
| kawasan aktif | 216.96×135.6 mm |
| garis besar | 226.33×157.3×3.14 mm |
| permukaan | |
| kecerahan | 400 cd/m² (Typ.) |
| nisbah kontras | 1000:1 (Typ.) |
| warna paparan | 16.2M (6-bit + FRC), CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 6S6PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 45 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | PAD |
