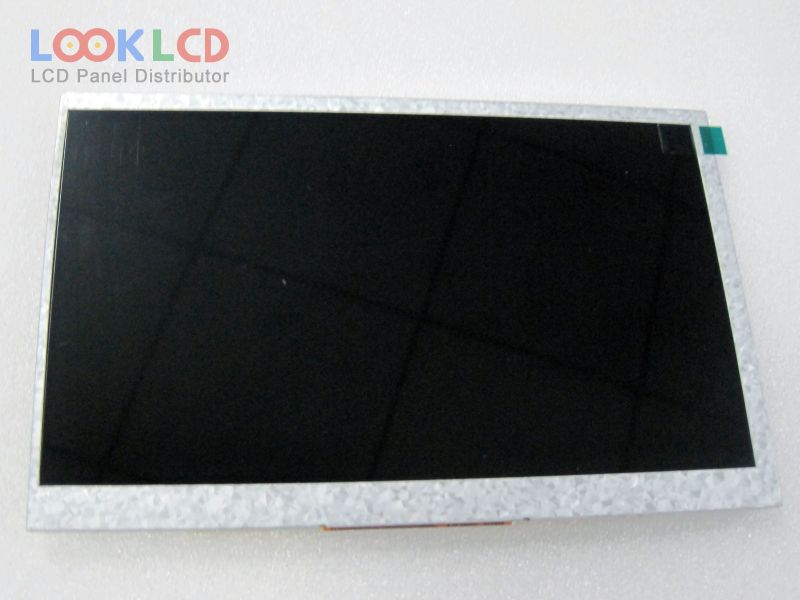

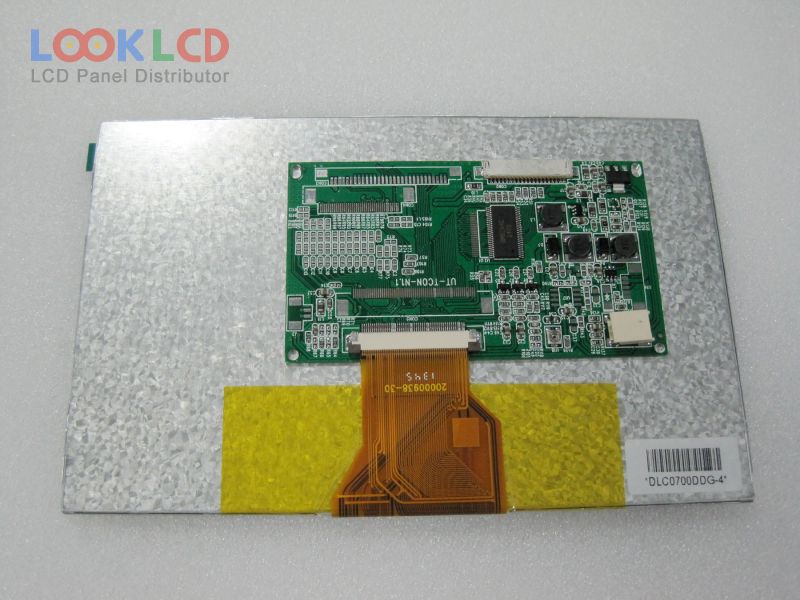

| Nombor Bahagian | DLC0700DDG-4 |
| Jenama | Other |
| Saiz | 7.0 |
| Permohonan | CNS |
| Resolusi | 800×480 |
| Komposisi | LCM |
| Kecerahan | 320 |
| CR | 700:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | DLC |
| model panel | DLC0700DDG-4 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 7.0 inch |
| resolusi | 800(RGB)×480 , WVGA |
| mod paparan | TN, Normally White, Reflective |
| kawasan aktif | 154.08×85.92 mm |
| garis besar | 164.2×103.2 mm |
| permukaan | |
| kecerahan | 320 cd/m² (Typ.) |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | 10/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S9PWLEDWithout Driver |
| antara muka isyarat | Parallel RGB (1 ch, 6-bit), 40 pins |
| voltan masukan | 5.0V (Typ.) |
| permohonan | CNS |
