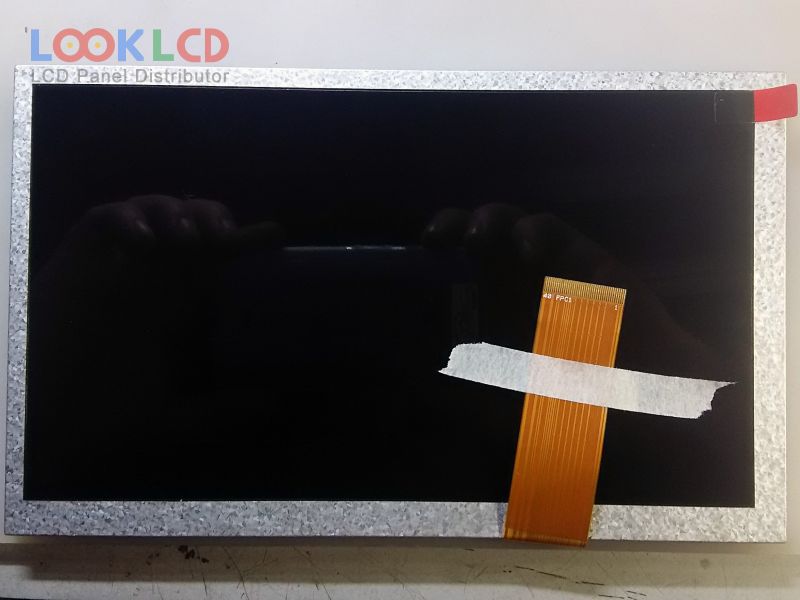

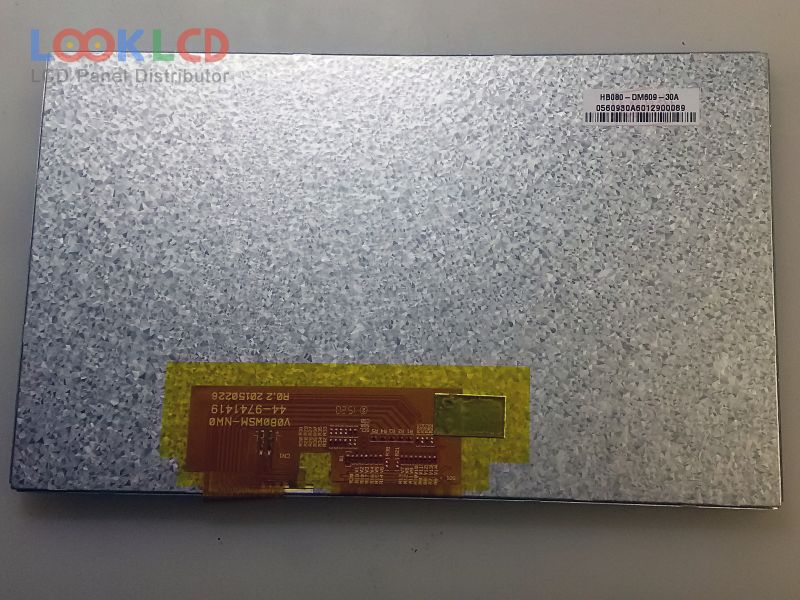

| Nombor Bahagian | AV080WSM-NW0 |
| Jenama | BOE |
| Saiz | 8.0 |
| Permohonan | CNS |
| Resolusi | 1024×600 |
| Komposisi | LCM |
| Kecerahan | 600 |
| CR | 800:1 |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | LVDS |
| jenama panel | BOE |
| model panel | AV080WSM-NW0 |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 8.0 inch |
| resolusi | 1024(RGB)×600 , WSVGA |
| mod paparan | ADS, Normally Black, Transmissive |
| kawasan aktif | 176.64×99.36 mm |
| garis besar | 192.8×116.9 mm |
| permukaan | |
| kecerahan | 600 cd/m² (Typ.) |
| nisbah kontras | 800:1 (Typ.) |
| warna paparan | 16.7M (6-bit + Hi-FRC), CIE193150% |
| masa tindak balas | 25 (Typ.)(Tr+Td) |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | 3S10PWLEDWithout Driver |
| antara muka isyarat | LVDS (1 ch, 8-bit), 40 pins |
| voltan masukan | 3.3/11.5/18.0/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| permohonan | CNS |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| L5F30818P04 | SONY | 6.5 | 800×480 |
| LA080WV1-TD01 | LG Display | 8.0 | 800×480 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ070T5GC01 | SHARP | 7.0 | |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| LTA070B792F | TOSHIBA | 7.0 | 800×480 |
| ND068-101A1 | 6.8 | 1280×480 | |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
