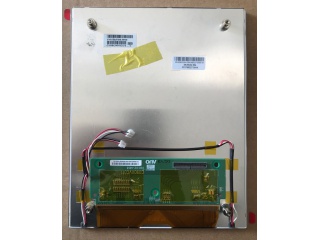

| Nombor Bahagian | C090XVC01.1 |
| Jenama | AUO |
| Saiz | 9.0 |
| Permohonan | Automotive Display |
| Resolusi | 768×1024 |
| Komposisi | a-Si TFT-LCD, LCM |
| Kecerahan | |
| CR | |
| Warna | 16.7M |
| Lampu latar | WLED |
| Antara muka | |
| jenama panel | AUO |
| model panel | C090XVC01.1 |
| saiz panel | 9.0" |
| jenis panel | a-Si TFT-LCD, LCM |
| resolusi | 768(RGB)×1024, XGA |
| format piksel | RGB Vertical Stripe |
| sudut pandangan | 80/80/80/80 (Typ.)(CR≥10) |
| mod paparan | AMVA, Normally Black, Transmissive |
| pandangan terbaik pada | Symmetry |
| masa tindak balas | - |
| warna paparan | 16.7M |
| jenis lampu | WLED |
| berat panel | - |
| permohonan | Automotive Display |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| DLC0900DIG-1 | Other | 9.0 | 800×480 |
| ED090NA-01H | Innolux | 9.0 | 1280×800 |
| LQ090Y3DG01 | SHARP | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
