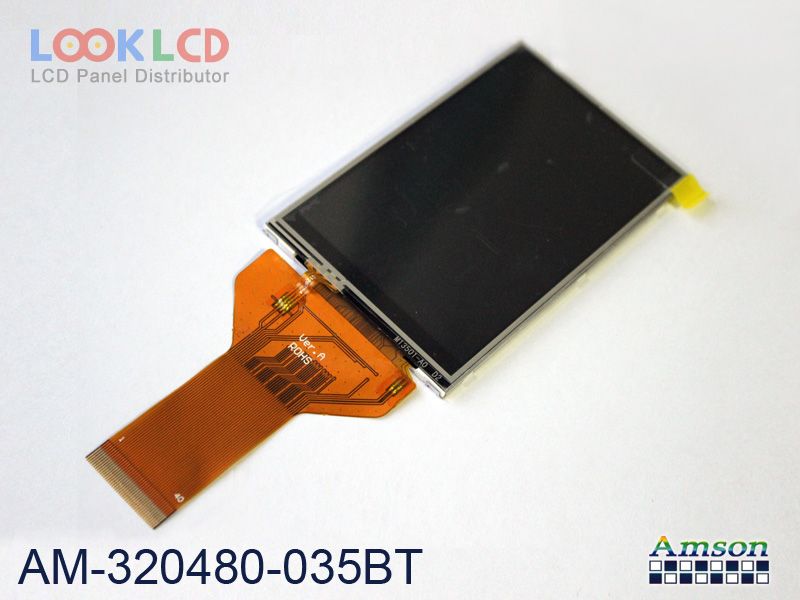

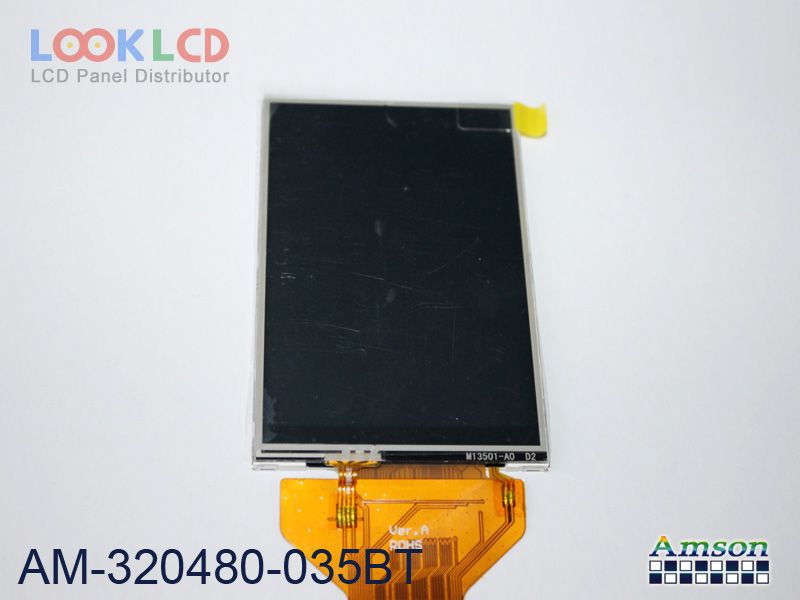

| Nombor Bahagian | AM-320480-035BT |
| Jenama | Other |
| Saiz | 3.5 |
| Permohonan | HHP |
| Resolusi | 320×480 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | CPU |
| jenama panel | Amson |
| model panel | AM-320480-035BT |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 320(RGB)×480 , HVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 48.96×73.44 mm |
| garis besar | 55.66×85.04×3.7 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | 8/16-bit 8080 parallel, 40 pins |
| voltan masukan | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| permohonan | HHP |
