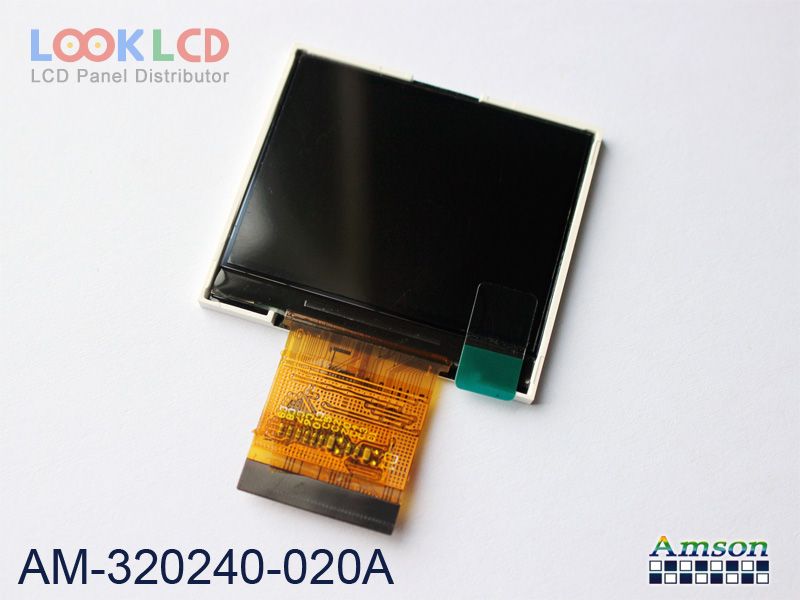

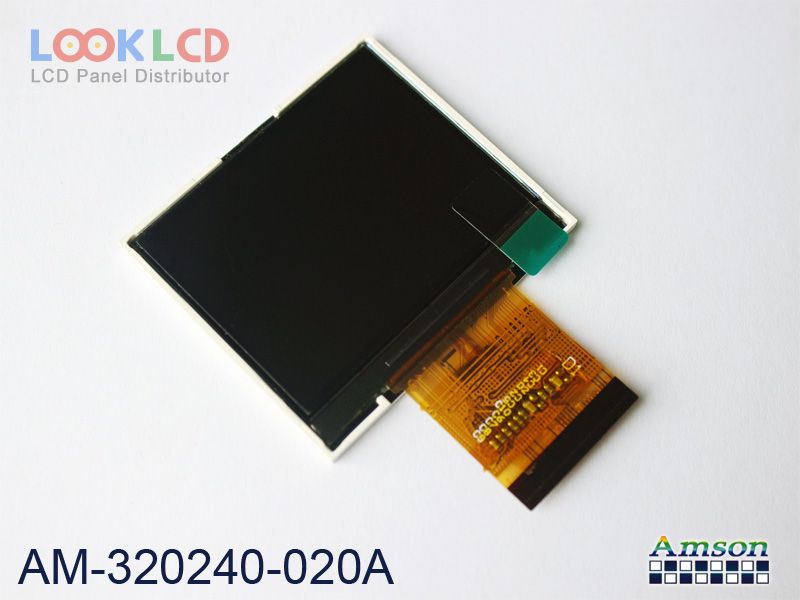

| Nombor Bahagian | AM-320240-020A |
| Jenama | Other |
| Saiz | 2.0 |
| Permohonan | HHP |
| Resolusi | 320×240 |
| Komposisi | LCM |
| Kecerahan | |
| CR | |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | Serial RGB |
| jenama panel | Amson |
| model panel | AM-320240-020A |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 2.0 inch |
| resolusi | 320(RGB)×240 , QVGA |
| mod paparan | TN, Normally White, Transmissive |
| kawasan aktif | 40.8×30.6 mm |
| garis besar | 46.1×40.96×2.7 mm |
| permukaan | |
| kecerahan | |
| nisbah kontras | |
| warna paparan | 262K (6-bit) |
| masa tindak balas | |
| sudut pandangan | |
| jenis lampu | WLEDWithout Driver |
| antara muka isyarat | Serial RGB (6-bit) + SPI, 40 pins |
| voltan masukan | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| permohonan | HHP |
