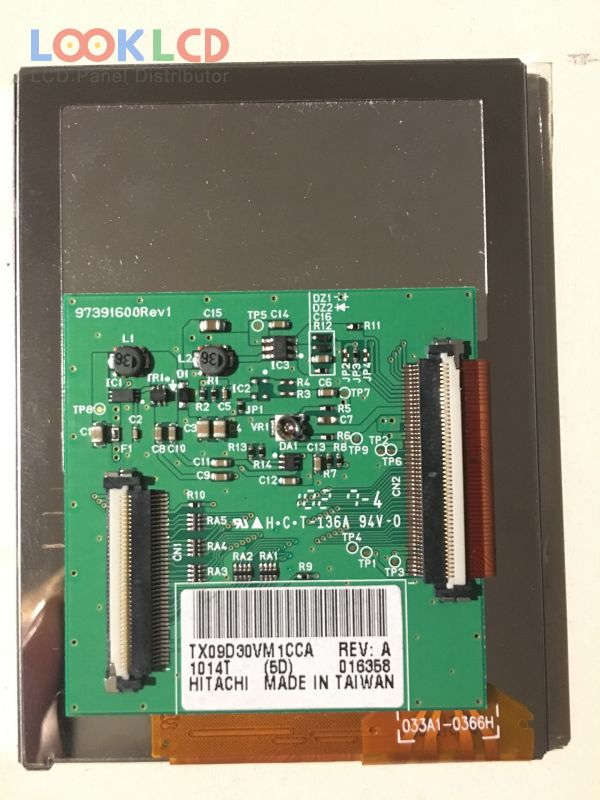

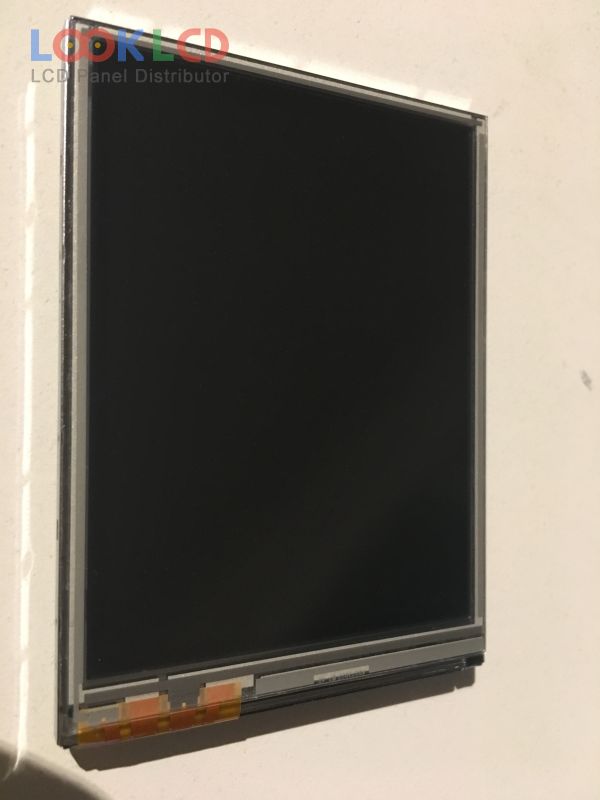

| Nombor Bahagian | TX09D30VM1CCA |
| Jenama | KOE |
| Saiz | 3.5 |
| Permohonan | HHP |
| Resolusi | 240×320 |
| Komposisi | LCM |
| Kecerahan | 250 |
| CR | 300:1 |
| Warna | 262K |
| Lampu latar | WLED |
| Antara muka | TTL |
| jenama panel | HITACHI |
| model panel | TX09D30VM1CCA |
| jenis panel | a-Si TFT-LCD , LCM |
| saiz panel | 3.5 inch |
| resolusi | 240(RGB)×320 , QVGA |
| mod paparan | TN, Normally White, TMR |
| kawasan aktif | 53.64×71.52 mm |
| garis besar | 64×86×7.9 mm |
| permukaan | Antiglare |
| kecerahan | 250 cd/m² (Typ.) |
| nisbah kontras | 300 : 1 (Typ.) |
| warna paparan | 262K (6-bit), CIE193150% |
| masa tindak balas | 15/15 (Typ.)(Tr/Td) |
| sudut pandangan | 70/70/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| kekerapan | 60Hz |
| jenis lampu | WLEDEmbedded (LED Driver) |
| antara muka isyarat | CMOS (1 ch, 6-bit), 40 pins |
| voltan masukan | 3.3V (Typ.) |
| permohonan | HHP |
